Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • TDK EPCOS
  • B65815E0000R049
  • Magnetics - Transformer, Inductor Components

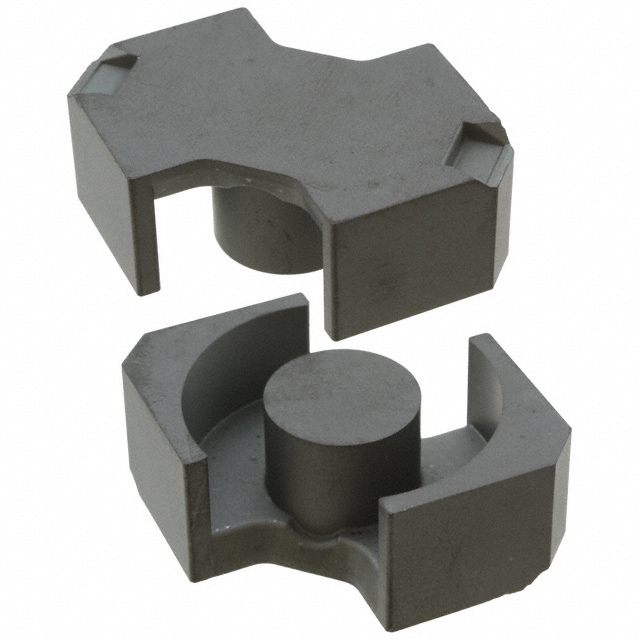

  • FERRITE CORE RM 3.7UH N49 2PCS
  •  B65815E0000R049 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity100
  • DescriptionUncoated N49 Ferrite Core RM Type 1.480" (37.60mm) Length 0.634" (16.10mm) Width Diameter 0.484" (12.30mm) Height
  • Tolerance-20%, +30%
  • MaterialN49
  • Length1.480" (37.60mm)
  • Width0.634" (16.10mm)
  • Height0.484" (12.30mm)
  • Core TypeRM
  • Supplier Device PackageRM 12
  • Inductance Factor (Al)3.7 µH
  • Initial Permeability (µi)1500
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1150.0
  • Core Factor (ΣI/A) mm⁻¹0.39
  • Effective Length (le) mm57.0
  • Effective Area (Ae) mm²146.0
  • Minimum Core Cross Section (Amin) mm²125.0
  • Effective Magnetic Volume (Ve) mm³8320.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65815E0000R049 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 962
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
