  • TDK EPCOS
  • B65875A0000R049
  • Magnetics - Transformer, Inductor Components

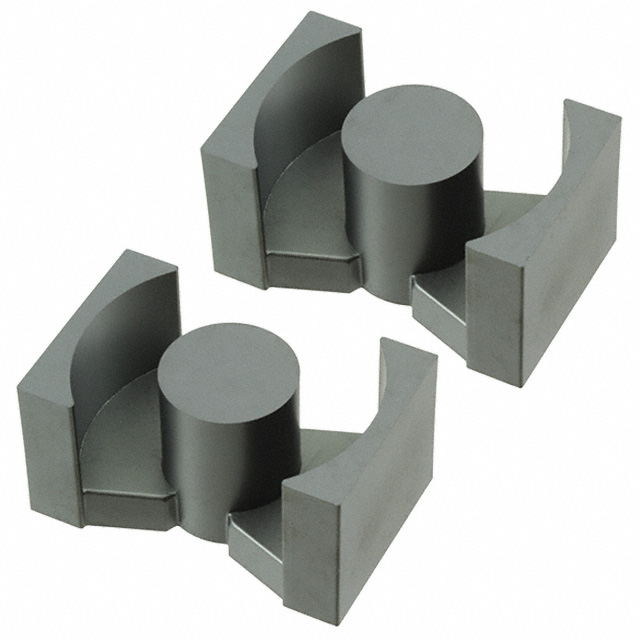

  • FERRITE CORE PQ 2UH N49 2PCS
  •  B65875A0000R049 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity240
  • DescriptionUncoated N49 Ferrite Core PQ Type 0.807" (20.50mm) Length 0.551" (14.00mm) Width Diameter 0.398" (10.10mm) Height
  • Tolerance-20%, +30%
  • MaterialN49
  • Length0.807" (20.50mm)
  • Width0.551" (14.00mm)
  • Height0.398" (10.10mm)
  • Core TypePQ
  • Supplier Device PackagePQ 20 x 20
  • Inductance Factor (Al)2 µH
  • Initial Permeability (µi)1500
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1150.0
  • Core Factor (ΣI/A) mm⁻¹0.718
  • Effective Length (le) mm45.2
  • Effective Area (Ae) mm²62.9
  • Minimum Core Cross Section (Amin) mm²54.4
  • Effective Magnetic Volume (Ve) mm³2843.0
