  • TDK EPCOS
  • B65877B0000R097
  • Magnetics - Transformer, Inductor Components

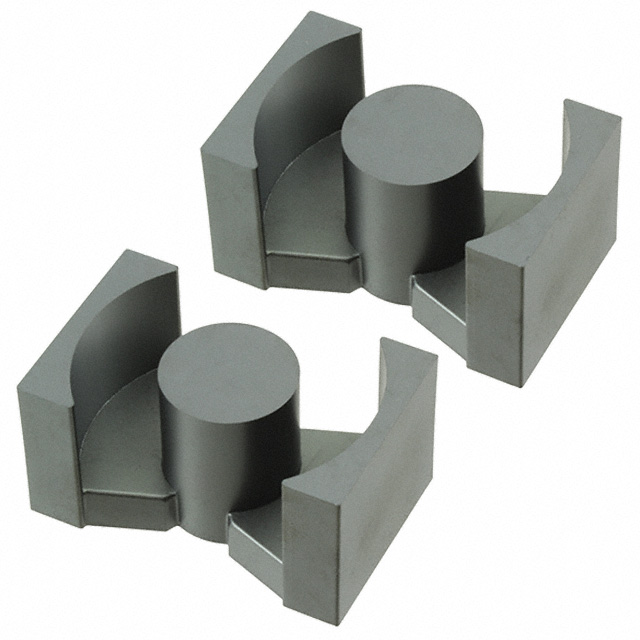

  • FERRITE CORE PQ 5.15UH N97 2PCS
  •  B65877B0000R097 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity200
  • DescriptionUncoated N97 Ferrite Core PQ Type 1.043" (26.50mm) Length 0.748" (19.00mm) Width Diameter 0.397" (10.08mm) Height
  • Tolerance-20%, +30%
  • MaterialN97
  • Length1.043" (26.50mm)
  • Width0.748" (19.00mm)
  • Height0.397" (10.08mm)
  • Core TypePQ
  • Supplier Device PackagePQ 26 x 20
  • Inductance Factor (Al)5.15 µH
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1480
  • Core Factor (ΣI/A) mm⁻¹0.363
  • Effective Length (le) mm44.4
  • Effective Area (Ae) mm²122.3
  • Minimum Core Cross Section (Amin) mm²108.8
  • Effective Magnetic Volume (Ve) mm³5435

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65877B0000R097 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 403
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
