Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • TDK EPCOS
  • B66393G0000X197
  • Magnetics - Transformer, Inductor Components

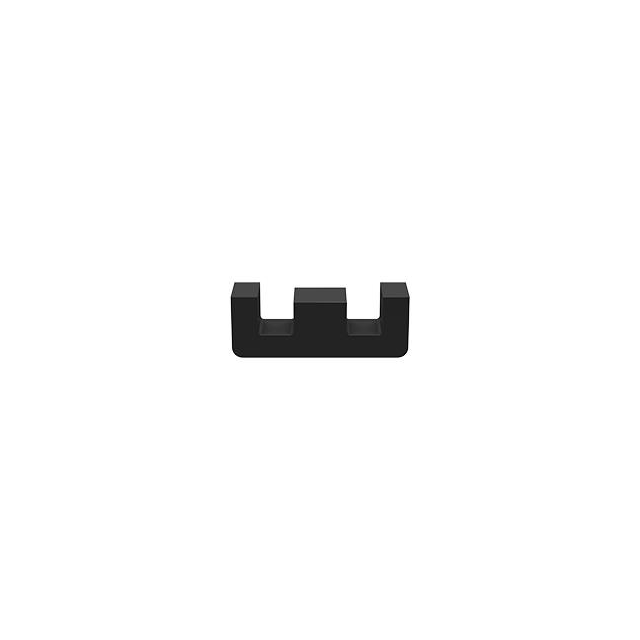

  • FERRITE CORE E 1.25UH N97
  •  B66393G0000X197 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity2000
  • DescriptionUncoated N97 Ferrite Core E Type 0.630" (16.00mm) Length 0.185" (4.70mm) Width Diameter 0.228" (5.80mm) Height
  • Tolerance±25%
  • MaterialN97
  • Length0.630" (16.00mm)
  • Width0.185" (4.70mm)
  • Height0.228" (5.80mm)
  • Core TypeE
  • Supplier Device PackageE 16 x 6 x 5
  • Inductance Factor (Al)1.25 µH
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1480
  • Core Factor (ΣI/A) mm⁻¹1.49
  • Effective Length (le) mm28.6
  • Effective Area (Ae) mm²19.2
  • Minimum Core Cross Section (Amin) mm²17.6
  • Effective Magnetic Volume (Ve) mm³549

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B66393G0000X197 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
