  • TE Connectivity AMP Connectors

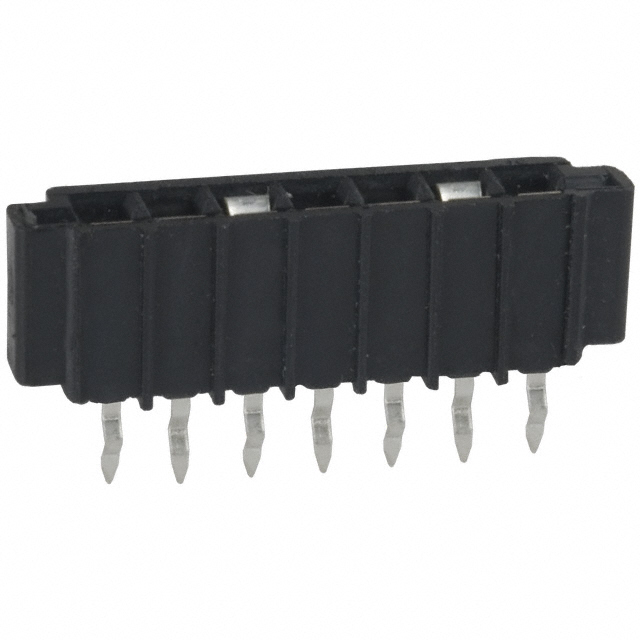

  • 5-520315-7
  • Connectors, Interconnects
  • CONN FFC VERT 7POS 2.54MM PCB
  •  5-520315-7 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTE Connectivity AMP Connectors
  • CategoryConnectors, Interconnects
  • PackagesBulk
  • Standard Quantity180
  • Description7 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
  • Contact FinishTin
  • Voltage Rating250V
  • Current Rating (Amps)1A
  • Mounting TypeThrough Hole
  • Number of Positions7
  • Pitch0.100" (2.54mm)
  • Operating Temperature-55°C ~ 105°C
  • TerminationKinked Pin
  • Height Above Board0.273" (6.93mm)
  • Material Flammability RatingUL94 V-0
  • Contact MaterialPhosphor Bronze
  • FFC, FCB Thickness0.13mm ~ 0.38mm
  • Housing MaterialPolyester Thermoplastic, Glass Filled
  • Cable End TypeStraight
  • Housing ColorBlack
  • Mating Cycles25
  • Flat Flex TypeFFC, FPC
  • Connector/Contact TypeContacts, Vertical - 1 Sided

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 5-520315-7 from TE Connectivity AMP Connectors only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 27,083
Please send an RFQ for instant price and inventory.
