  • TE Connectivity Potter & Brumfield Relays
  • T9GS5L24-15
  • Relays

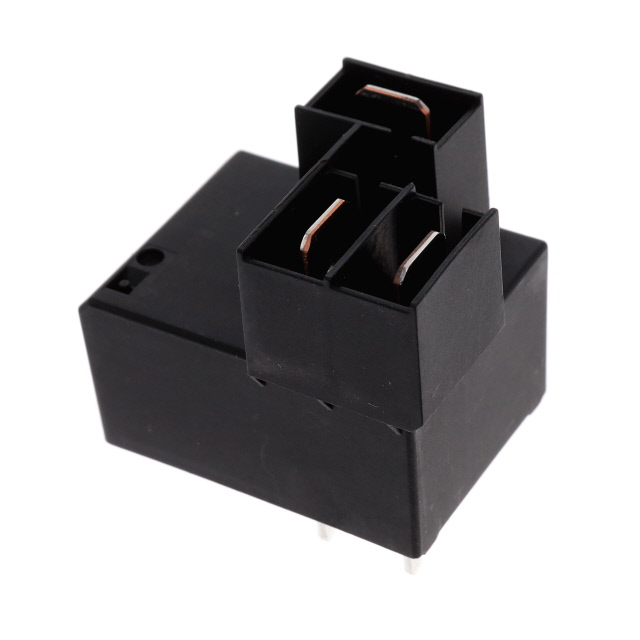

  • RELAY GEN PURPOSE SPDT 20A 15V
  •  T9GS5L24-15 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTE Connectivity Potter & Brumfield Relays
  • CategoryRelays
  • PackagesBulk
  • Standard Quantity10
  • DescriptionGeneral Purpose Relay SPDT (1 Form C) 15VDC Coil Through Hole
  • Mounting TypeThrough Hole
  • Coil Voltage15VDC
  • Operating Temperature-40°C ~ 105°C
  • Termination StylePC Pin, Quick Connect - 0.250" (6.3mm)
  • Relay TypeGeneral Purpose
  • Coil Current60 mA
  • Coil TypeNon Latching
  • Seal RatingSealed - Fully
  • Contact MaterialSilver Tin Oxide (AgSnO)
  • Contact FormSPDT (1 Form C)
  • Contact Rating (Current)20 A
  • Switching Voltage480VAC - Max
  • Must Release Voltage1.5 VDC
  • Must Operate Voltage11.25 VDC
  • Operate Time15 ms
  • Release Time22 ms
  • Coil Resistance249 Ohms
  • Coil InsulationClass F

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new T9GS5L24-15 from TE Connectivity Potter & Brumfield Relays only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 396
Please send an RFQ for instant price and inventory.
