  • Texas Instruments

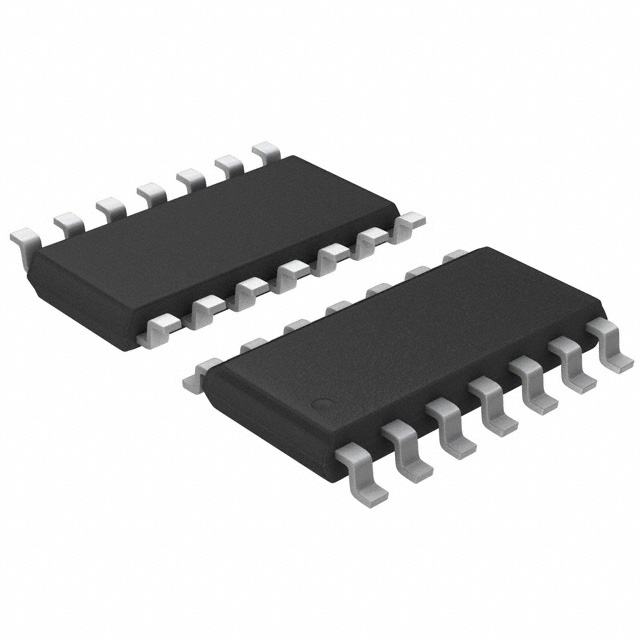

  • SN74HC7002DR
  • Integrated Circuits (ICs)
  • IC GATE NOR 4CH 2-INP 14SOIC
  •  SN74HC7002DR Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionNOR Gate IC 4 Channel Schmitt Trigger 14-SOIC
  • FeaturesSchmitt Trigger
  • Package / Case14-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Logic TypeNOR Gate
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply2V ~ 6V
  • Current - Output High, Low5.2mA, 5.2mA
  • Number of Inputs2
  • Supplier Device Package14-SOIC
  • Input Logic Level - High1.5V ~ 4.2V
  • Input Logic Level - Low0.3V ~ 1.2V
  • Max Propagation Delay @ V, Max CL22ns @ 6V, 50pF
  • Number of Circuits4
  • Current - Quiescent (Max)2 µA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SN74HC7002DR from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 6,858
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
