  • Texas Instruments

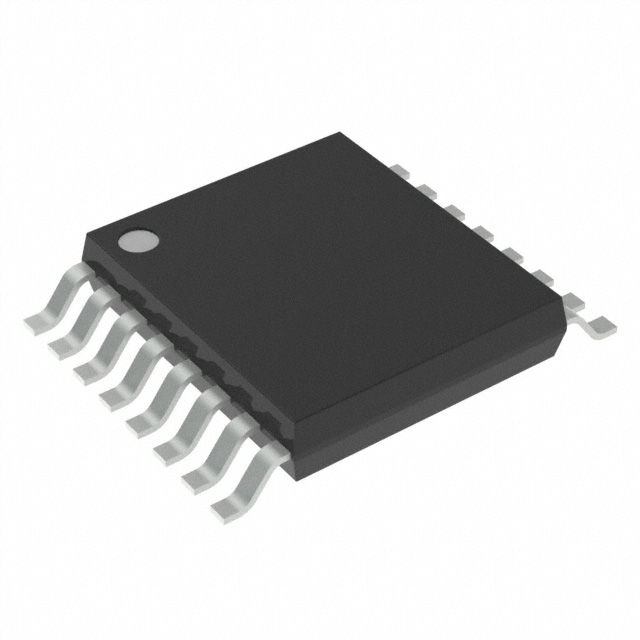

  • TMUX7309FPWR
  • Integrated Circuits (ICs)
  • 60-V FAULT-PROTECTED, 4:1, TWO-C
  •  TMUX7309FPWR Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2000
  • Description2 Circuit IC Switch 4:1 250Ohm 16-TSSOP
  • Package / Case16-TSSOP (0.173", 4.40mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 125°C (TA)
  • On-State Resistance (Max)250Ohm
  • -3db Bandwidth245MHz
  • Supplier Device Package16-TSSOP
  • Voltage - Supply, Single (V+)5V ~ 44V
  • Charge Injection-17pC
  • Crosstalk-103dB @ 1MHz
  • Switch CircuitSP4T - Open
  • Multiplexer/Demultiplexer Circuit4:1
  • Channel-to-Channel Matching (ΔRon)2.5Ohm
  • Switch Time (Ton, Toff) (Max)300ns, 400ns
  • Channel Capacitance (CS(off), CD(off))3.5pF, 14pF
  • Current - Leakage (IS(off)) (Max)1nA
  • Number of Circuits2

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TMUX7309FPWR from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,997
Please send an RFQ for instant price and inventory.
