  • Texas Instruments
  • SN74AC564DW
  • Integrated Circuits (ICs)

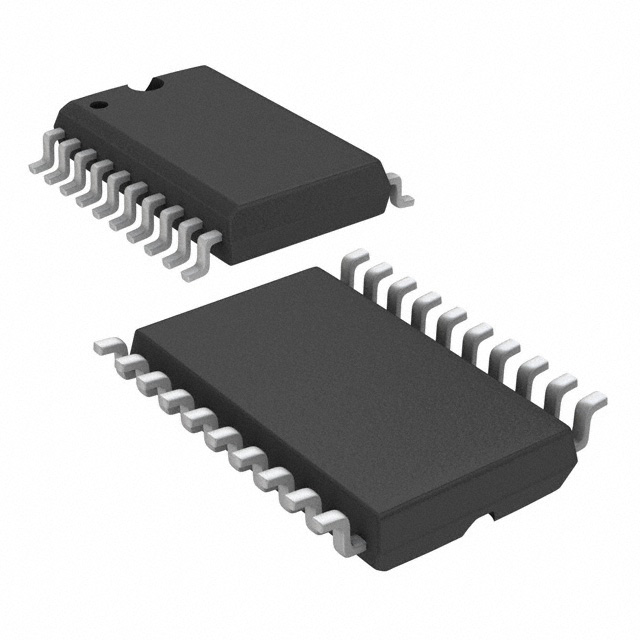

  • IC FF D-TYPE SNGL 8BIT 20SOIC
  •  SN74AC564DW Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity25
  • DescriptionFlip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
  • Package / Case20-SOIC (0.295", 7.50mm Width)
  • Output TypeTri-State, Inverted
  • Mounting TypeSurface Mount
  • Number of Elements1
  • FunctionStandard
  • TypeD-Type
  • Operating Temperature-40°C ~ 85°C (TA)
  • Voltage - Supply2V ~ 6V
  • Current - Quiescent (Iq)4 µA
  • Current - Output High, Low24mA, 24mA
  • Trigger TypePositive Edge
  • Clock Frequency95 MHz
  • Input Capacitance4.5 pF
  • Supplier Device Package20-SOIC
  • Max Propagation Delay @ V, Max CL10.5ns @ 5V, 50pF
  • Number of Bits per Element8

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SN74AC564DW from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,144
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
