  • Texas Instruments

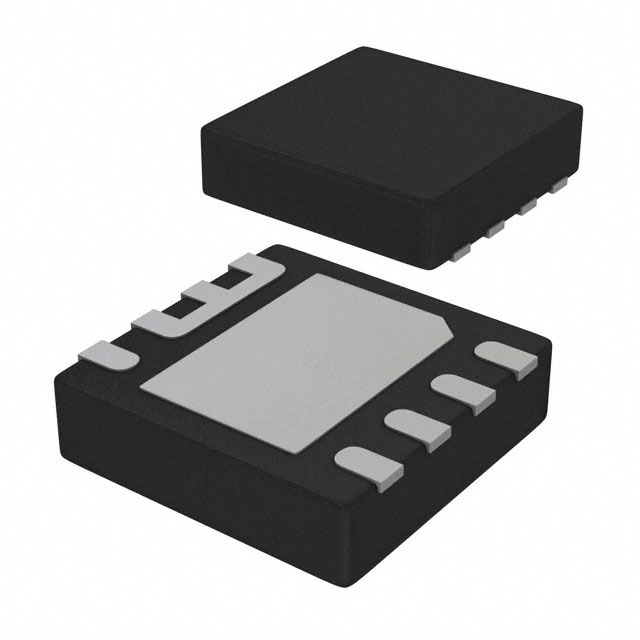

  • TPS22969DNYR
  • Integrated Circuits (ICs)
  • IC PWR SWITCH N-CHAN 1:1 8WSON
  •  TPS22969DNYR Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTexas Instruments
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionPower Switch/Driver 1:1 N-Channel 6A 8-WSON (3x3)
  • FeaturesLoad Discharge, Slew Rate Controlled
  • Package / Case8-WDFN Exposed Pad
  • Output TypeN-Channel
  • Mounting TypeSurface Mount
  • Number of Outputs1
  • InterfaceOn/Off
  • Switch TypeGeneral Purpose
  • Operating Temperature-40°C ~ 125°C (TJ)
  • Output ConfigurationHigh Side
  • Rds On (Typ)4.4mOhm
  • Input TypeNon-Inverting
  • Voltage - Load2.5V ~ 5.5V
  • Voltage - Supply (Vcc/Vdd)0.8V ~ 5.5V
  • Current - Output (Max)6A
  • Ratio - Input:Output1:1
  • Supplier Device Package8-WSON (3x3)

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TPS22969DNYR from Texas Instruments only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,695
Please send an RFQ for instant price and inventory.
