  • Toshiba Electronic Devices and Storage Corporation

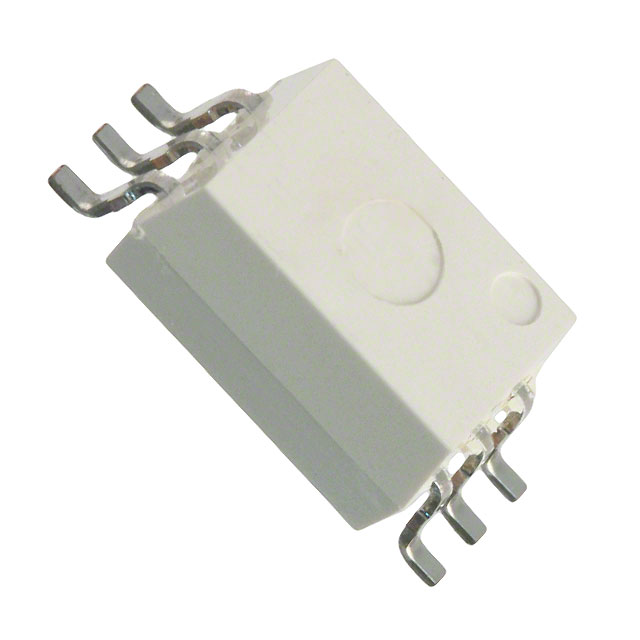

  • TLP705A(TP,F)
  • Isolators
  • OPTOISO 5KV 1CH GATE DVR 6SDIP
  •  TLP705A(TP,F) Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerToshiba Electronic Devices and Storage Corporation
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1500
  • Description600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP
  • Package / Case6-SOIC (0.268", 6.80mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 100°C
  • Voltage - Forward (Vf) (Typ)1.57V
  • Current - Peak Output600mA
  • TechnologyOptical Coupling
  • Current - Output High, Low400mA, 400mA
  • Voltage - Isolation5000Vrms
  • Approval AgencycUR, UR, VDE
  • Supplier Device Package6-SDIP
  • Rise / Fall Time (Typ)35ns, 15ns
  • Common Mode Transient Immunity (Min)20kV/µs
  • Propagation Delay tpLH / tpHL (Max)200ns, 200ns
  • Pulse Width Distortion (Max)50ns
  • Number of Channels1
  • Current - DC Forward (If) (Max)25 mA
  • Voltage - Output Supply10V ~ 30V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new TLP705A(TP,F) from Toshiba Electronic Devices and Storage Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
