Product Specifications
  • AttributesAttribute Value
  • ManufacturerTriad Magnetics
  • CategoryTransformers
  • PackagesBulk
  • Standard Quantity1
  • Description600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:0.90 Audio Transformer 300Hz ~ 3.5kHz Through Hole
  • Size / Dimension1.650" L x 1.375" W (41.91mm x 34.93mm)
  • Mounting TypeThrough Hole
  • Operating Temperature-20°C ~ 85°C
  • Termination StylePC Pin
  • Transformer TypeData/Voice Coupling
  • Turns Ratio - Primary:Secondary1:0.90
  • Insertion Loss1.5dB Typ
  • Frequency Range300Hz ~ 3.5kHz
  • Voltage - Isolation1500VAC
  • Return Loss10dB Typ
  • Height - Seated (Max)0.680" (17.27mm)
  • Impedance - Primary (Ohms)600
  • Impedance - Secondary (Ohms)600
  • DC Resistance (DCR) - Primary108Ohm
  • DC Resistance (DCR) - Secondary61Ohm
  • Frequency Response±0.5dB
  • Power Level-45dB ~ 7dB

VIEW ALL

Quality and Reliability

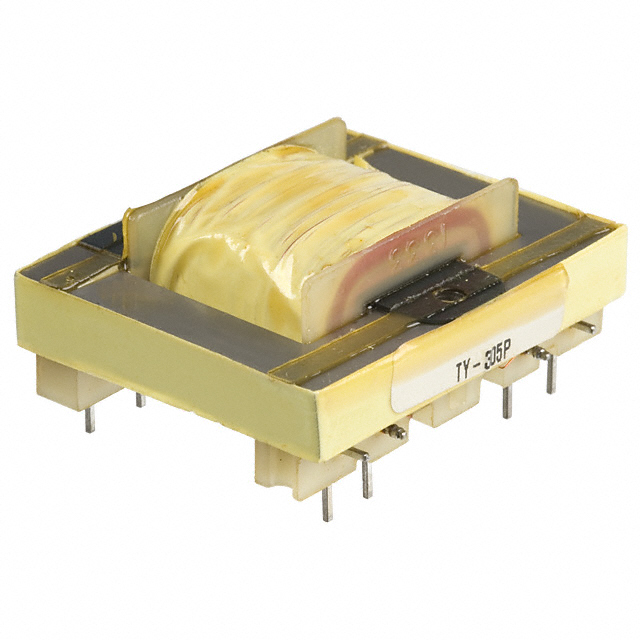

We supply 100% original and brand-new TY-305P from Triad Magnetics only.
