  • Vishay General Semiconductor – Diodes Division
  • S1PKHM3/85A
  • Discrete Semiconductor Products
  • DIODE GEN PURP 800V 1A DO220AA
  •  S1PKHM3/85A Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerVishay General Semiconductor – Diodes Division
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity10000

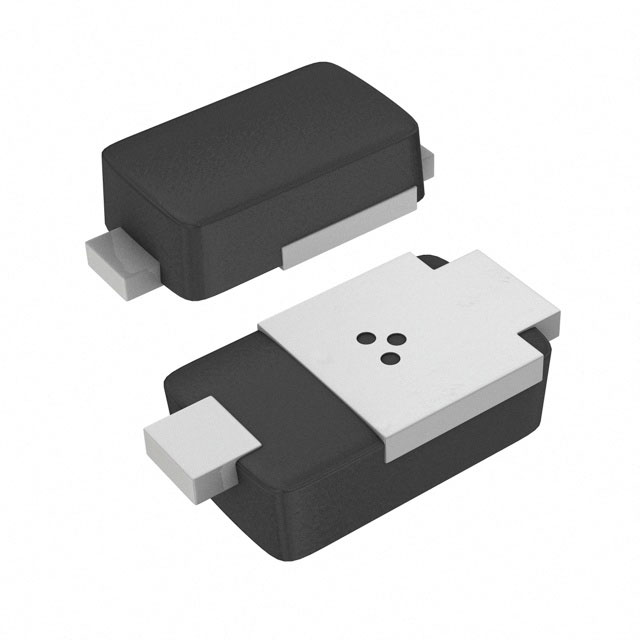

  • DescriptionDiode 800 V 1A Surface Mount DO-220AA (SMP)
  • Package / CaseDO-220AA
  • Mounting TypeSurface Mount
  • SpeedStandard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)1.8 µs
  • TechnologyStandard
  • Capacitance @ Vr, F6pF @ 4V, 1MHz
  • Current - Average Rectified (Io)1A
  • Supplier Device PackageDO-220AA (SMP)
  • Operating Temperature - Junction-55°C ~ 150°C
  • GradeAutomotive
  • Voltage - DC Reverse (Vr) (Max)800 V
  • Voltage - Forward (Vf) (Max) @ If1.1 V @ 1 A
  • Current - Reverse Leakage @ Vr1 µA @ 800 V
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new S1PKHM3/85A from Vishay General Semiconductor – Diodes Division only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
