  • Vishay General Semiconductor – Diodes Division

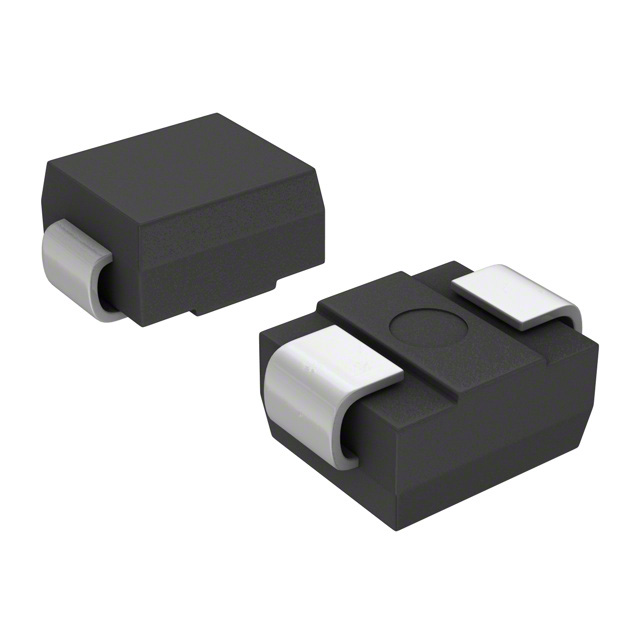

  • S2M-M3/5BT
  • Discrete Semiconductor Products
  • DIODE GEN PURP 1KV 1.5A DO214AA
  •  S2M-M3/5BT Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerVishay General Semiconductor – Diodes Division
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3200
  • DescriptionDiode 1000 V 1.5A Surface Mount DO-214AA (SMB)
  • Package / CaseDO-214AA, SMB
  • Mounting TypeSurface Mount
  • SpeedStandard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)2 µs
  • TechnologyStandard
  • Capacitance @ Vr, F16pF @ 4V, 1MHz
  • Current - Average Rectified (Io)1.5A
  • Supplier Device PackageDO-214AA (SMB)
  • Operating Temperature - Junction-55°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)1000 V
  • Voltage - Forward (Vf) (Max) @ If1.15 V @ 1.5 A
  • Current - Reverse Leakage @ Vr1 µA @ 1000 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new S2M-M3/5BT from Vishay General Semiconductor – Diodes Division only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
