• Vishay / Siliconix
• SQJA94EP-T1_GE3
• Discrete Semiconductor Products

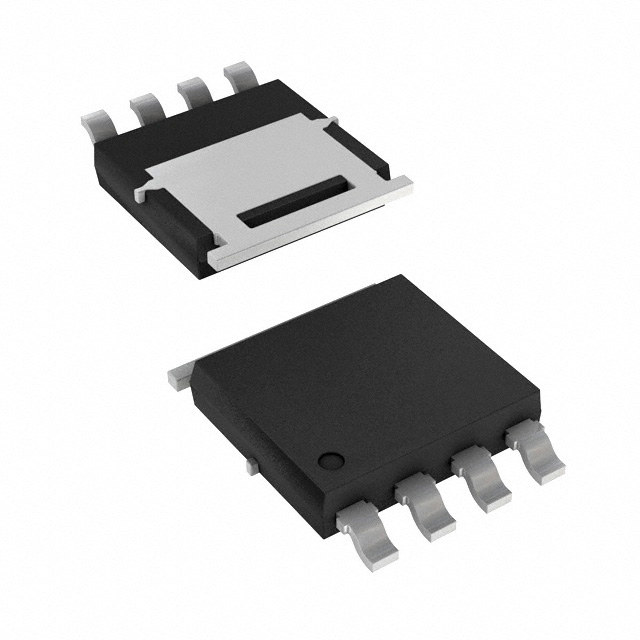

• MOSFET N-CH 80V 46A PPAK SO-8
•  SQJA94EP-T1_GE3 Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerVishay / Siliconix
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 80 V 46A (Tc) 55W (Tc) Surface Mount PowerPAK® SO-8
• Package / CasePowerPAK® SO-8
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C46A (Tc)
• Rds On (Max) @ Id, Vgs13.5mOhm @ 10A, 10V
• Power Dissipation (Max)55W (Tc)
• Vgs(th) (Max) @ Id3.5V @ 250µA
• Supplier Device PackagePowerPAK® SO-8
• GradeAutomotive
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)80 V
• Gate Charge (Qg) (Max) @ Vgs35 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds2000 pF @ 25 V
• QualificationAEC-Q101
