• Wickmann / Littelfuse
• S8X5ECS2RP
• Discrete Semiconductor Products

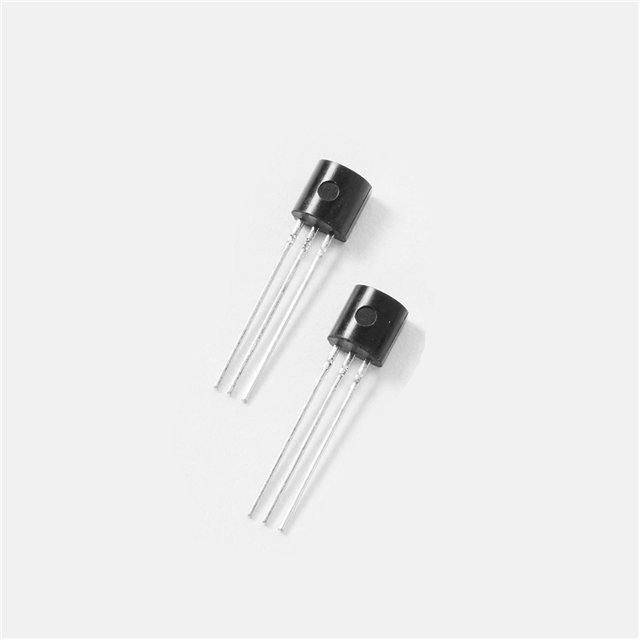

• SCR SEN 800V 0.5A TO-92WB
•  S8X5ECS2RP Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerWickmann / Littelfuse
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity2000
• DescriptionSCR 800 V 500 mA Sensitive Gate Through Hole TO-92
• Package / CaseTO-226-3, TO-92-3 (TO-226AA)
• Mounting TypeThrough Hole
• SCR TypeSensitive Gate
• Operating Temperature-40°C ~ 125°C (TJ)
• Current - Hold (Ih) (Max)3 mA
• Current - Gate Trigger (Igt) (Max)50 µA
• Current - Non Rep. Surge 50, 60Hz (Itsm)10A, 12A
• Current - On State (It (AV)) (Max)300 mA
• Voltage - Gate Trigger (Vgt) (Max)800 mV
• Voltage - On State (Vtm) (Max)1.8 V
• Current - Off State (Max)3 µA
• Supplier Device PackageTO-92
• Current - On State (It (RMS)) (Max)500 mA
• Voltage - Off State800 V
