• Wickmann / Littelfuse
• SJ6006VS2TP
• Discrete Semiconductor Products

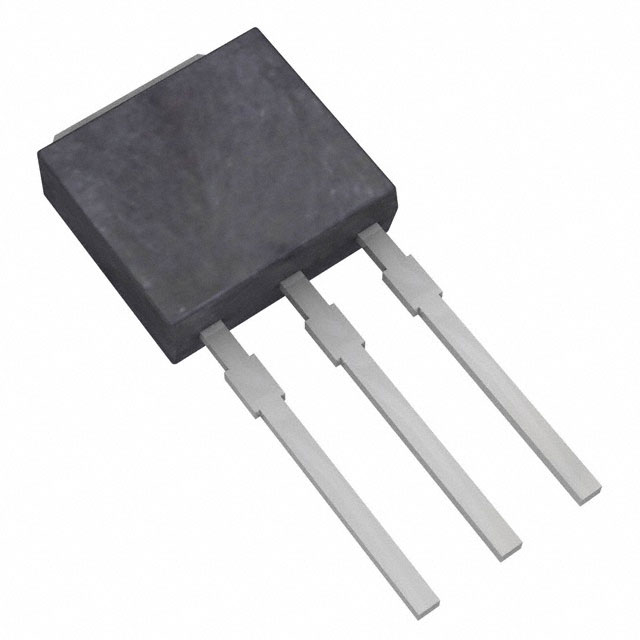

• SCR 600V 6A TO251
•  SJ6006VS2TP Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerWickmann / Littelfuse
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity750
• DescriptionSCR 600 V 6 A Sensitive Gate Through Hole TO-251AA
• Package / CaseTO-251-3 Short Leads, IPAK, TO-251AA
• Mounting TypeThrough Hole
• SCR TypeSensitive Gate
• Operating Temperature-40°C ~ 150°C (TJ)
• Current - Hold (Ih) (Max)6 mA
• Current - Gate Trigger (Igt) (Max)15 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm)83A, 100A
• Current - On State (It (AV)) (Max)3.84 A
• Voltage - Gate Trigger (Vgt) (Max)1.5 V
• Voltage - On State (Vtm) (Max)1.6 V
• Current - Off State (Max)5 µA
• Supplier Device PackageTO-251AA
• Current - On State (It (RMS)) (Max)6 A
• Voltage - Off State600 V
