• YAGEO XSEMI
• XP6NA3R5IT
• Discrete Semiconductor Products

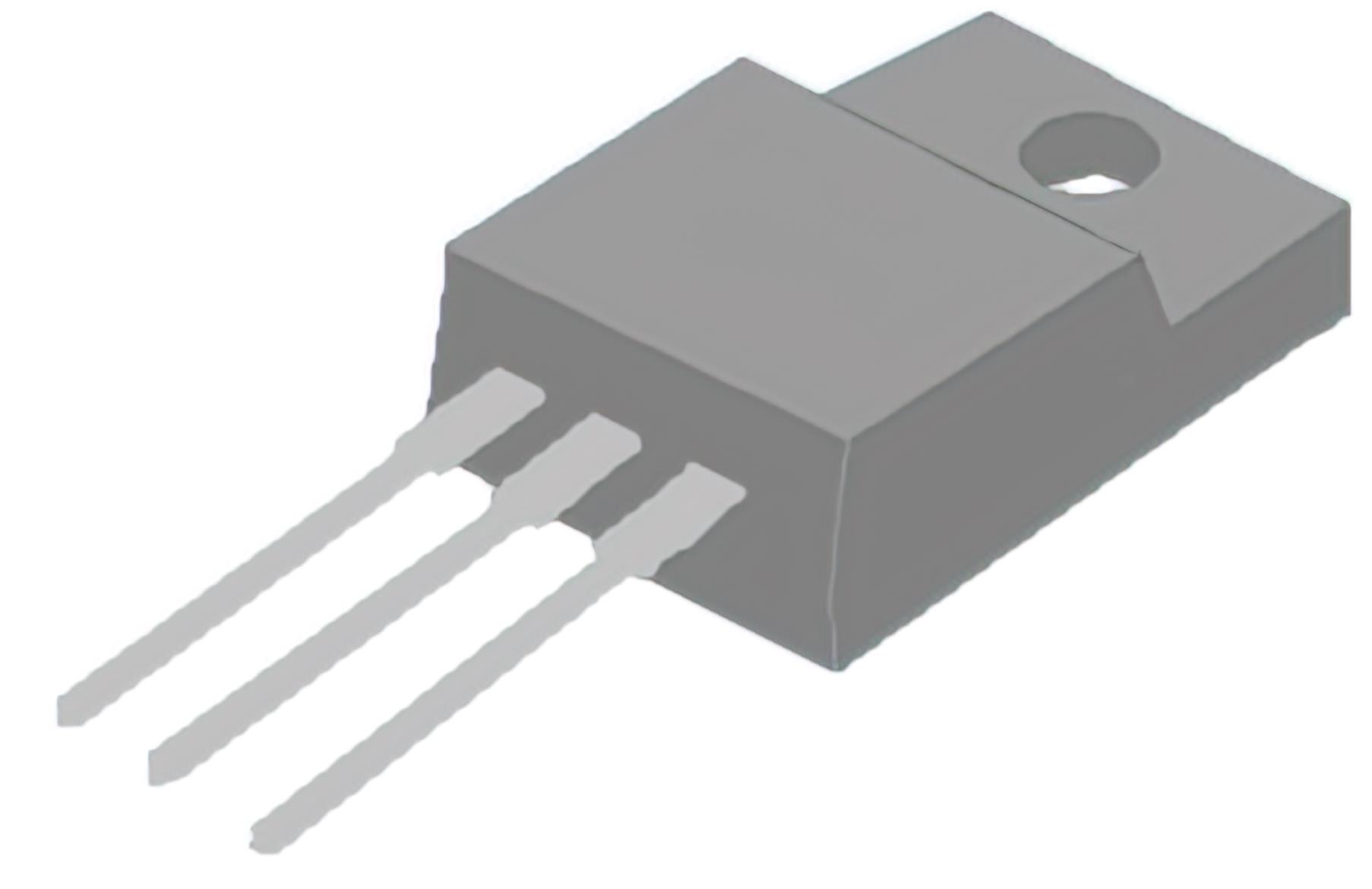

• MOSFET N-CH 60V 72A TO220CFM
•  XP6NA3R5IT Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerYAGEO XSEMI
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity50
• DescriptionN-Channel 60 V 72A (Tc) 1.92W (Ta), 32.9W (Tc) Through Hole TO-220CFM
• Package / CaseTO-220-3 Full Pack
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C72A (Tc)
• Rds On (Max) @ Id, Vgs3.5mOhm @ 30A, 10V
• Power Dissipation (Max)1.92W (Ta), 32.9W (Tc)
• Vgs(th) (Max) @ Id4V @ 250µA
• Supplier Device PackageTO-220CFM
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)60 V
• Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds5440 pF @ 50 V
