• Zetex Semiconductors (Diodes Inc.)
• DMTH10H4M5LPSW
• Discrete Semiconductor Products
• MOSFET BVDSS: 61V~100V POWERDI50
•  DMTH10H4M5LPSW Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity2500

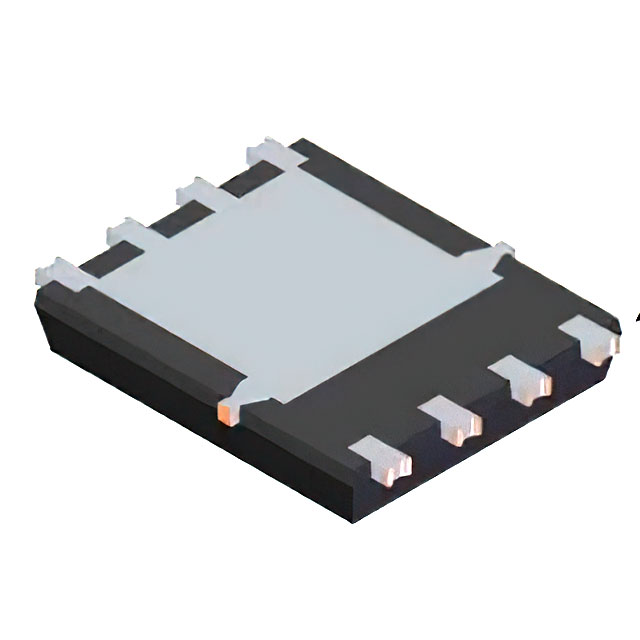

• DescriptionN-Channel 100 V 20A (Ta), 107A (Tc) 4.7W (Ta), 136W (Tc) Surface Mount, Wettable Flank PowerDI5060-8 (Type UX)
• Package / Case8-PowerTDFN
• Mounting TypeSurface Mount, Wettable Flank
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C20A (Ta), 107A (Tc)
• Rds On (Max) @ Id, Vgs4.9mOhm @ 30A, 10V
• Power Dissipation (Max)4.7W (Ta), 136W (Tc)
• Vgs(th) (Max) @ Id2.5V @ 250µA
• Supplier Device PackagePowerDI5060-8 (Type UX)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)100 V
• Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds4843 pF @ 50 V
