  • Zetex Semiconductors (Diodes Inc.)
  • LLSD101B-7
  • Discrete Semiconductor Products
  • SCHOTTKY SOD80 50V 0.015A 125C
  •  LLSD101B-7 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionDiode 50 V 15mA Surface Mount Mini MELF

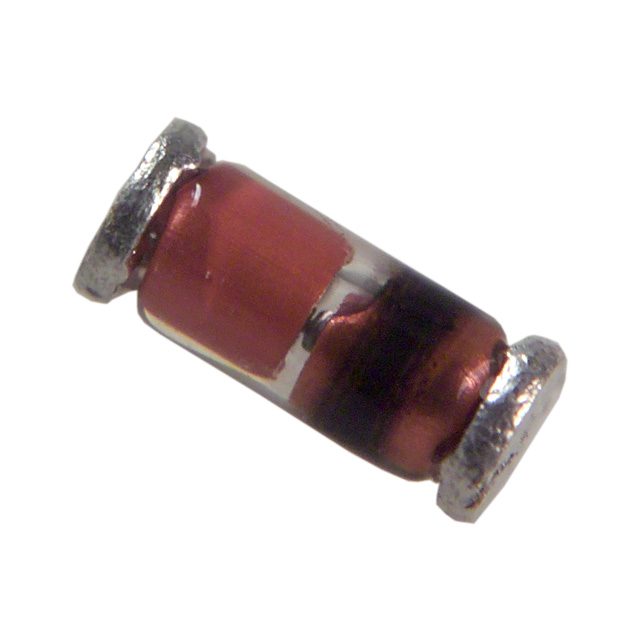

  • Package / CaseDO-213AC, MINI-MELF, SOD-80
  • Mounting TypeSurface Mount
  • SpeedSmall Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr)1 ns
  • TechnologySchottky
  • Capacitance @ Vr, F2.1pF @ 0V, 1MHz
  • Current - Average Rectified (Io)15mA
  • Supplier Device PackageMini MELF
  • Operating Temperature - Junction-55°C ~ 125°C
  • Voltage - DC Reverse (Vr) (Max)50 V
  • Voltage - Forward (Vf) (Max) @ If950 mV @ 15 A
  • Current - Reverse Leakage @ Vr200 nA @ 40 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new LLSD101B-7 from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
