  • Zetex Semiconductors (Diodes Inc.)

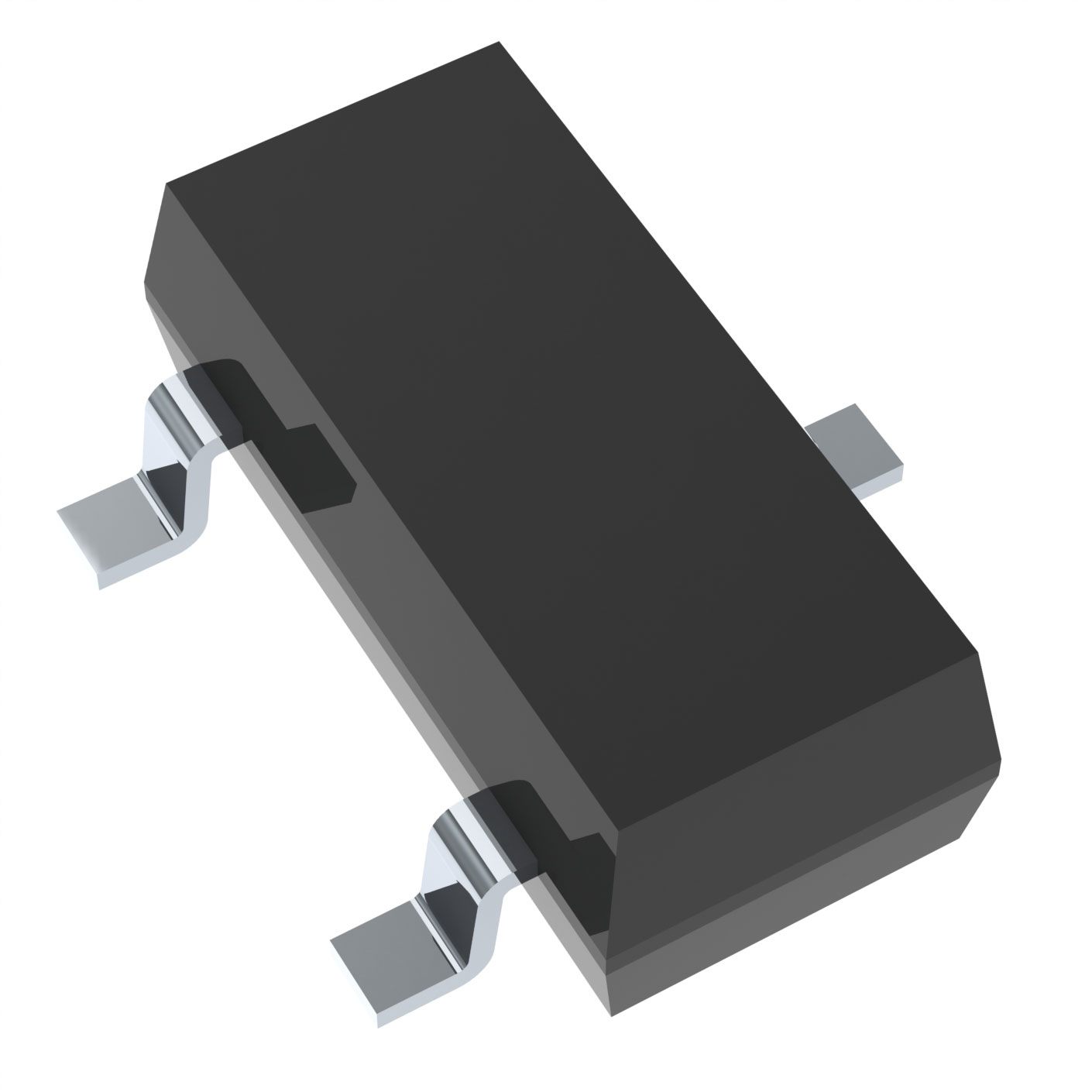

  • ZTN23015CFHQTA
  • Discrete Semiconductor Products
  • PWR LOW SAT TRANSISTOR SOT23 T&R
  •  ZTN23015CFHQTA Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionBipolar (BJT) Transistor NPN 15 V 6 A 235MHz 730 mW Surface Mount SOT-23 (Type DN)
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • Transistor TypeNPN
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic180mV @ 120mA, 6A
  • Current - Collector Cutoff (Max)100nA
  • DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
  • Frequency - Transition235MHz
  • Supplier Device PackageSOT-23 (Type DN)
  • GradeAutomotive
  • Current - Collector (Ic) (Max)6 A
  • Voltage - Collector Emitter Breakdown (Max)15 V
  • Power - Max730 mW
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ZTN23015CFHQTA from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
