  • Zetex Semiconductors (Diodes Inc.)
  • BC56-16PAWQ-7
  • Discrete Semiconductor Products
  • PWR MID PERF TRANSISTOR W-DFN202
  •  BC56-16PAWQ-7 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerZetex Semiconductors (Diodes Inc.)
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionBipolar (BJT) Transistor NPN 80 V 1 A 150MHz 500 mW Surface Mount W-DFN2020-3 (Type A)

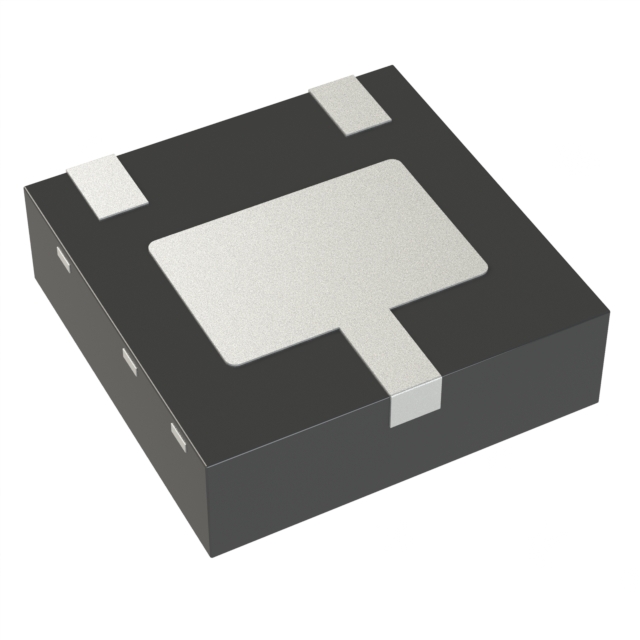

  • Package / Case3-UDFN Exposed Pad
  • Mounting TypeSurface Mount
  • Transistor TypeNPN
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 150mA, 2V
  • Frequency - Transition150MHz
  • Supplier Device PackageW-DFN2020-3 (Type A)
  • GradeAutomotive
  • Current - Collector (Ic) (Max)1 A
  • Voltage - Collector Emitter Breakdown (Max)80 V
  • Power - Max500 mW
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BC56-16PAWQ-7 from Zetex Semiconductors (Diodes Inc.) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
