• Zetex Semiconductors (Diodes Inc.)
• DMN3025LFDF-13
• Discrete Semiconductor Products
• MOSFET N-CH 30V 9.9A 6UDFN
•  DMN3025LFDF-13 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity10000
• DescriptionN-Channel 30 V 9.9A (Ta) 2.1W (Ta) Surface Mount U-DFN2020-6 (Type F)

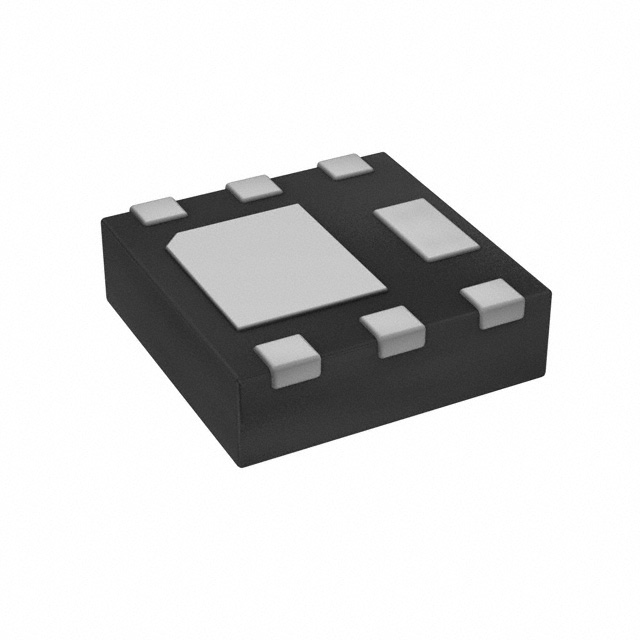

• Package / Case6-UDFN Exposed Pad
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C9.9A (Ta)
• Rds On (Max) @ Id, Vgs20.5mOhm @ 7A, 10V
• Power Dissipation (Max)2.1W (Ta)
• Vgs(th) (Max) @ Id2V @ 250µA
• Supplier Device PackageU-DFN2020-6 (Type F)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs13.2 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds641 pF @ 15 V
