• Zetex Semiconductors (Diodes Inc.)
• DMN100-7-F
• Discrete Semiconductor Products
• MOSFET N-CH 30V 1.1A SC59-3
•  DMN100-7-F Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerZetex Semiconductors (Diodes Inc.)
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity3000
• DescriptionN-Channel 30 V 1.1A (Ta) 500mW (Ta) Surface Mount SC-59-3

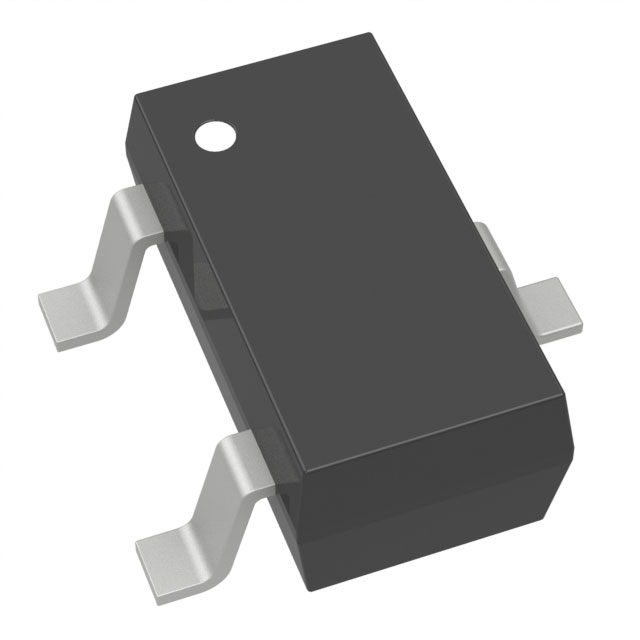

• Package / CaseTO-236-3, SC-59, SOT-23-3
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C1.1A (Ta)
• Rds On (Max) @ Id, Vgs240mOhm @ 1A, 10V
• Power Dissipation (Max)500mW (Ta)
• Vgs(th) (Max) @ Id3V @ 1mA
• Supplier Device PackageSC-59-3
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs5.5 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds150 pF @ 10 V
