AON7700 Alpha and Omega Semiconductor, Inc. Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Alpha and Omega Semiconductor, Inc.

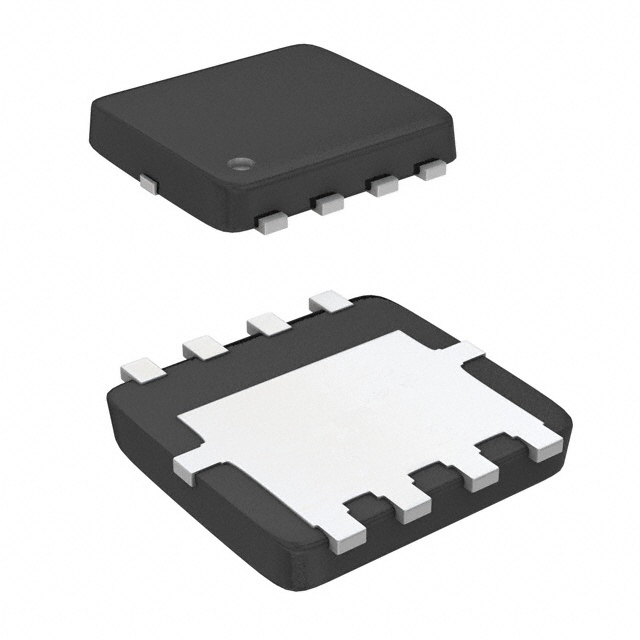

AON7700
Discrete Semiconductor Products
MOSFET N-CH 30V 16A/40A 8DFN
AON7700 Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerAlpha and Omega Semiconductor, Inc.
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity5000
DescriptionN-Channel 30 V 16A (Ta), 40A (Tc) 3.1W (Ta), 26W (Tc) Surface Mount 8-DFN-EP (3x3)
Package / Case8-PowerVDFN
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C16A (Ta), 40A (Tc)
Rds On (Max) @ Id, Vgs8.5mOhm @ 12A, 10V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)3.1W (Ta), 26W (Tc)
Vgs(th) (Max) @ Id3V @ 250µA
Supplier Device Package8-DFN-EP (3x3)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±12V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs33 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds4250 pF @ 15 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AON7700 from Alpha and Omega Semiconductor, Inc. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 0

Please send an RFQ for instant price and inventory.
