Product Specifications
  • AttributesAttribute Value
  • ManufacturerCEL (California Eastern Laboratories)
  • CategoryIsolators
  • PackagesTape & Reel (TR)
  • Standard Quantity1500

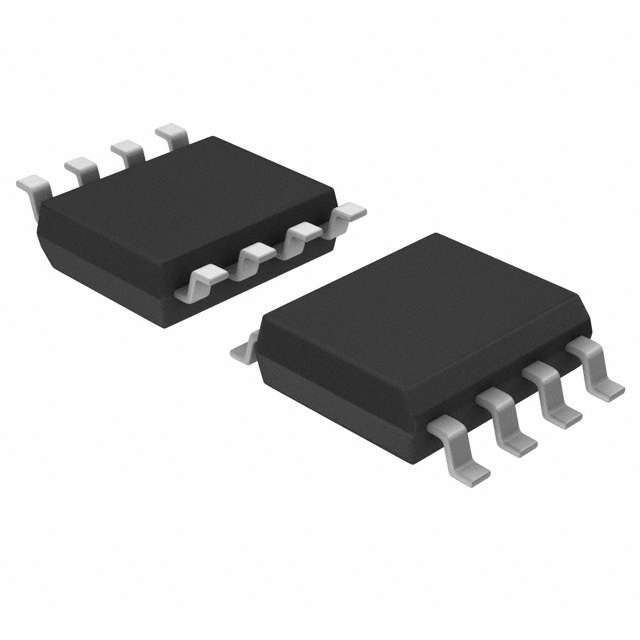

  • DescriptionLogic Output Optoisolator 10Mbps Open Collector 2500Vrms 1 Channel 15kV/µs CMTI 8-SSOP
  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Output TypeOpen Collector
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply4.5V ~ 5.5V
  • Voltage - Forward (Vf) (Typ)1.65V
  • Data Rate10Mbps
  • Input TypeDC
  • Voltage - Isolation2500Vrms
  • Current - DC Forward (If) (Max)20mA
  • Inputs - Side 1/Side 21/0
  • Supplier Device Package8-SSOP
  • Rise / Fall Time (Typ)20ns, 5ns
  • Common Mode Transient Immunity (Min)15kV/µs
  • Propagation Delay tpLH / tpHL (Max)75ns, 75ns
  • Number of Channels1
  • Current - Output / Channel25 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PS9817A-1-F3-AX from CEL (California Eastern Laboratories) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
