• Fairchild Semiconductor
• FQN1N60CTA
• Discrete Semiconductor Products
• SMALL SIGNAL FIELD-EFFECT TRANSI
•  FQN1N60CTA Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerFairchild Semiconductor
• CategoryDiscrete Semiconductor Products
• PackagesBulk
• Standard Quantity1461
• DescriptionN-Channel 600 V 300mA (Tc) 1W (Ta), 3W (Tc) Through Hole TO-92-3

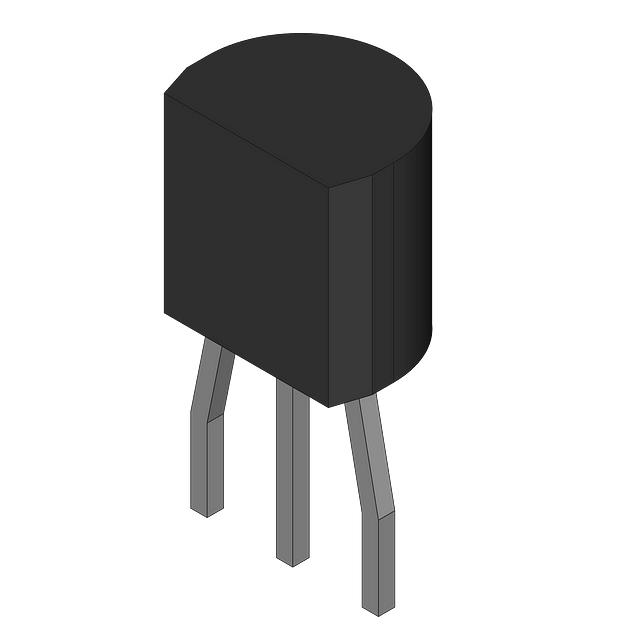

• Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
• Mounting TypeThrough Hole
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C300mA (Tc)
• Rds On (Max) @ Id, Vgs11.5Ohm @ 150mA, 10V
• Power Dissipation (Max)1W (Ta), 3W (Tc)
• Vgs(th) (Max) @ Id4V @ 250µA
• Supplier Device PackageTO-92-3
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±30V
• Drain to Source Voltage (Vdss)600 V
• Gate Charge (Qg) (Max) @ Vgs6.2 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds170 pF @ 25 V
