Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • HY Electronic (Cayman) Limited
  • BAT54WS (S1)
  • Discrete Semiconductor Products

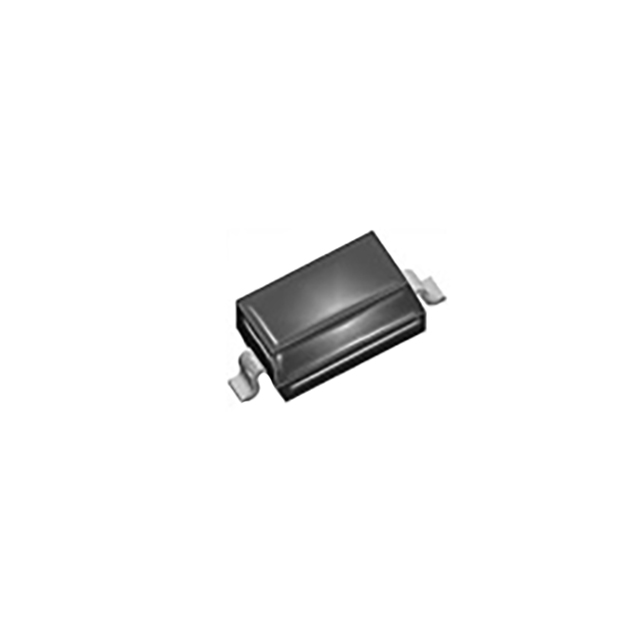

  • DIODE SCHOTTKY 30V 300MA SOD323
  •  BAT54WS (S1) Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerHY Electronic (Cayman) Limited
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity25
  • DescriptionDiode 30 V 300mA Surface Mount SOD-323
  • Package / CaseSC-76, SOD-323
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)6 ns
  • TechnologySchottky
  • Capacitance @ Vr, F10pF @ 1V, 1MHz
  • Current - Average Rectified (Io)300mA
  • Supplier Device PackageSOD-323
  • Operating Temperature - Junction125°C
  • Voltage - DC Reverse (Vr) (Max)30 V
  • Voltage - Forward (Vf) (Max) @ If1 V @ 100 mA
  • Current - Reverse Leakage @ Vr2 µA @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new BAT54WS (S1) from HY Electronic (Cayman) Limited only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,000
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
