Product Specifications
  • AttributesAttribute Value
  • ManufacturerJ.W. Miller / Bourns
  • CategoryTransformers
  • PackagesTape & Reel (TR)
  • Standard Quantity1000

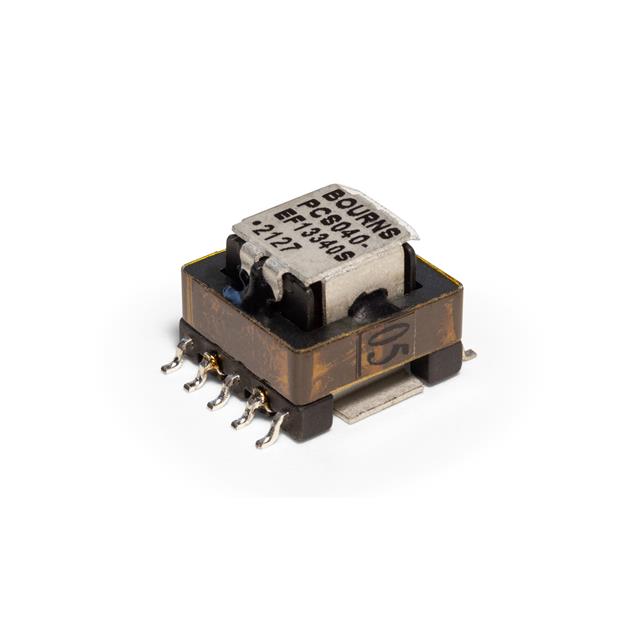

  • Description20 A 1:20 Current Sense Transformer 1MHz 7mOhm Primary, 400mOhm Secondary Max 81 mH Surface Mount
  • Size / Dimension0.245" L x 0.235" W (6.22mm x 5.97mm)
  • Mounting TypeSurface Mount
  • TypeInvasive
  • Termination StyleGull Wing
  • DC Resistance (DCR)7mOhm Primary, 400mOhm Secondary Max
  • Turns Ratio - Primary:Secondary1:20
  • ET (Volt-Time)10.8VµS
  • Frequency Range1MHz
  • Height - Seated (Max)0.209" (5.31mm)
  • Current Ratio20:1
  • Inductance81 mH
  • Current Rating (Amps)20 A

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PCS020-EE05081S from J.W. Miller / Bourns only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 983
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
