• Littelfuse / IXYS RF
• IXTY1R6N50P
• Discrete Semiconductor Products

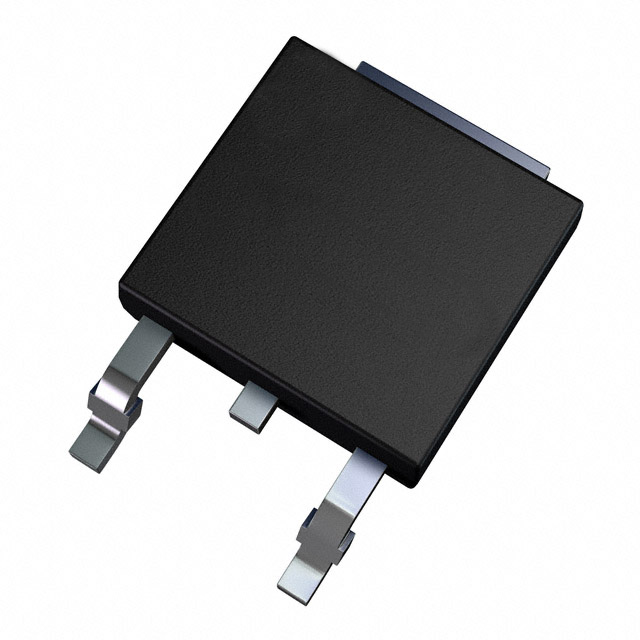

• MOSFET N-CH 500V 1.6A TO252
•  IXTY1R6N50P Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerLittelfuse / IXYS RF
• CategoryDiscrete Semiconductor Products
• PackagesTube
• Standard Quantity70
• DescriptionN-Channel 500 V 1.6A (Tc) 43W (Tc) Surface Mount TO-252AA
• Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C1.6A (Tc)
• Rds On (Max) @ Id, Vgs6.5Ohm @ 500mA, 10V
• Power Dissipation (Max)43W (Tc)
• Vgs(th) (Max) @ Id5.5V @ 25µA
• Supplier Device PackageTO-252AA
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±30V
• Drain to Source Voltage (Vdss)500 V
• Gate Charge (Qg) (Max) @ Vgs3.9 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds140 pF @ 25 V
