Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Micro Commercial Components (MCC)
  • MIW50N65F-BP
  • Discrete Semiconductor Products

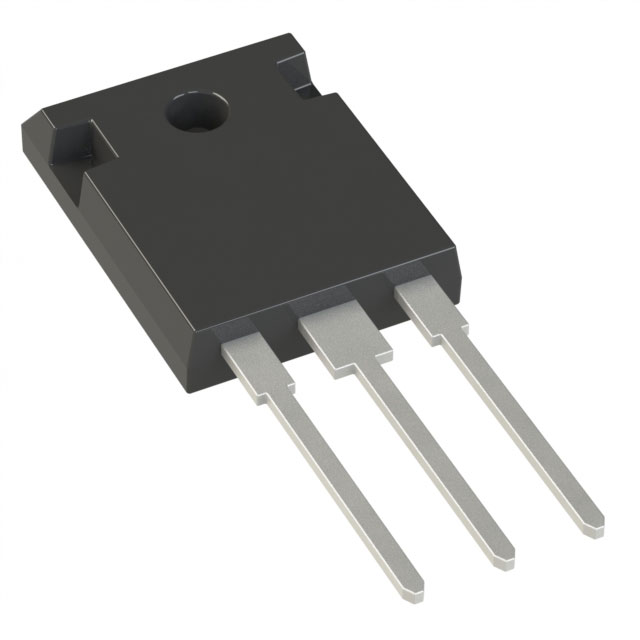

  • IGBT 650V 40A TO-247
  •  MIW50N65F-BP Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerMicro Commercial Components (MCC)
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity1
  • DescriptionIGBT Trench Field Stop 650 V 85 A 326 W Through Hole TO-247AB
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 175°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 50A
  • Supplier Device PackageTO-247AB
  • IGBT TypeTrench Field Stop
  • Td (on/off) @ 25°C55ns/319ns
  • Switching Energy1.27mJ (on), 650µJ (off)
  • Test Condition300V, 50A, 10Ohm, 15V
  • Gate Charge450 nC
  • Current - Collector (Ic) (Max)85 A
  • Voltage - Collector Emitter Breakdown (Max)650 V
  • Current - Collector Pulsed (Icm)200 A
  • Power - Max326 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MIW50N65F-BP from Micro Commercial Components (MCC) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
