Product Specifications
  • AttributesAttribute Value
  • ManufacturerNational Semiconductor
  • CategoryIntegrated Circuits (ICs)
  • PackagesBulk
  • Standard Quantity211
  • DescriptionLED Driver IC 2 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 750mA (Switch) 16-WQFN (4x4)

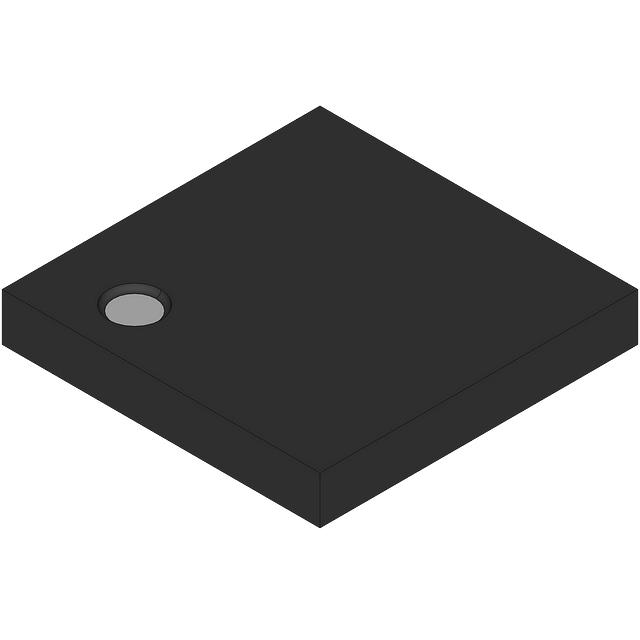

  • Package / Case16-WFQFN Exposed Pad
  • Voltage - Output35V
  • Mounting TypeSurface Mount
  • Number of Outputs2
  • Frequency1MHz
  • TypeDC DC Regulator
  • Operating Temperature-40°C ~ 85°C (TA)
  • ApplicationsBacklight
  • Current - Output / Channel750mA (Switch)
  • Internal Switch(s)Yes
  • TopologyStep-Up (Boost)
  • Supplier Device Package16-WQFN (4x4)
  • DimmingAnalog, PWM
  • Voltage - Supply (Min)2.5V
  • Voltage - Supply (Max)5.5V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new LM3503SQ-35/NOPB from National Semiconductor only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 4,696
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
