  • Sanyo Semiconductor/onsemi
  • FDMC7570S
  • Discrete Semiconductor Products
  • MOSFET N-CH 25V 27A/40A POWER33
  •  FDMC7570S Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionN-Channel 25 V 27A (Ta), 40A (Tc) 2.3W (Ta), 59W (Tc) Surface Mount Power33

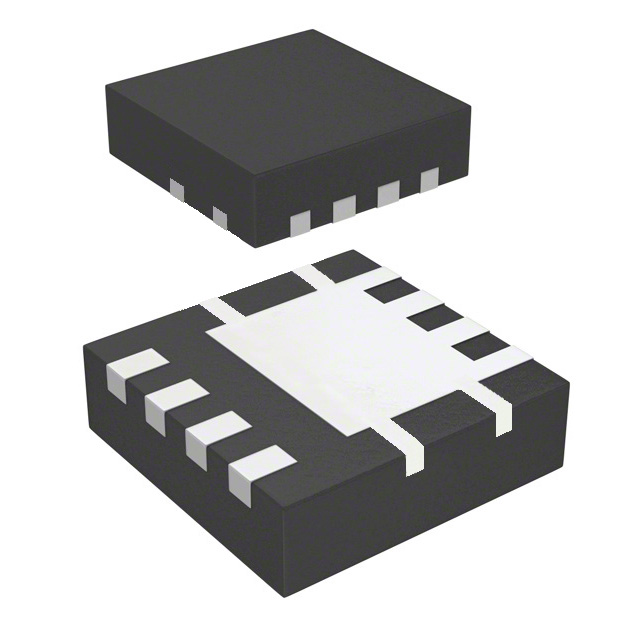

  • Package / Case8-PowerTDFN
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C27A (Ta), 40A (Tc)
  • Rds On (Max) @ Id, Vgs2mOhm @ 27A, 10V
  • Power Dissipation (Max)2.3W (Ta), 59W (Tc)
  • Vgs(th) (Max) @ Id3V @ 1mA
  • Supplier Device PackagePower33
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)25 V
  • Gate Charge (Qg) (Max) @ Vgs68 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds4410 pF @ 13 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FDMC7570S from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 648
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
