FCB20N60F-F085 Sanyo Semiconductor/onsemi Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Sanyo Semiconductor/onsemi

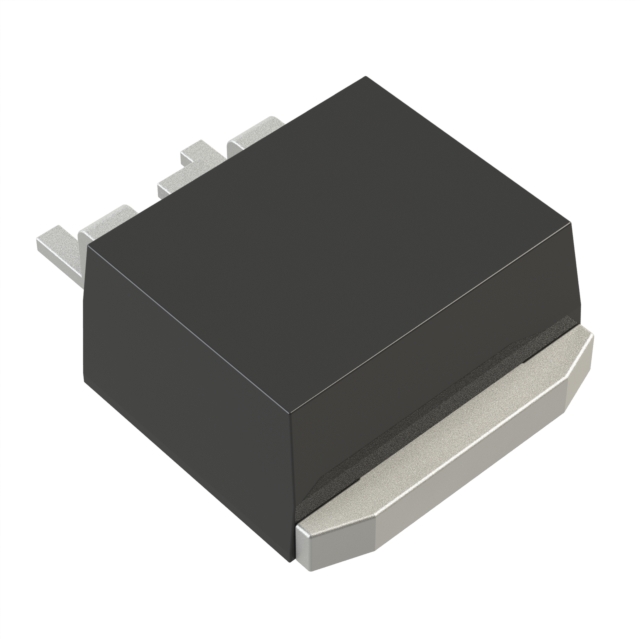

FCB20N60F-F085
Discrete Semiconductor Products
MOSFET N-CH 600V 20A TO263AB
FCB20N60F-F085 Datasheet

Cost
Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSanyo Semiconductor/onsemi
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity800
DescriptionN-Channel 600 V 20A (Tc) 405W (Tc) Surface Mount TO-263 (D2PAK)
Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting TypeSurface Mount
Operating Temperature-55°C ~ 150°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs195mOhm @ 20A, 10V
Power Dissipation (Max)405W (Tc)
Vgs(th) (Max) @ Id5V @ 250µA
Supplier Device PackageTO-263 (D2PAK)
GradeAutomotive
Drive Voltage (Max Rds On, Min Rds On)10V
Vgs (Max)±30V
Drain to Source Voltage (Vdss)600 V
Gate Charge (Qg) (Max) @ Vgs102 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds2035 pF @ 25 V
QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FCB20N60F-F085 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 0

Please send an RFQ for instant price and inventory.

Fast Shipping

QUANTITY

Multiples of 1
