  • Sanyo Semiconductor/onsemi
  • NTD20P06L-001
  • Discrete Semiconductor Products

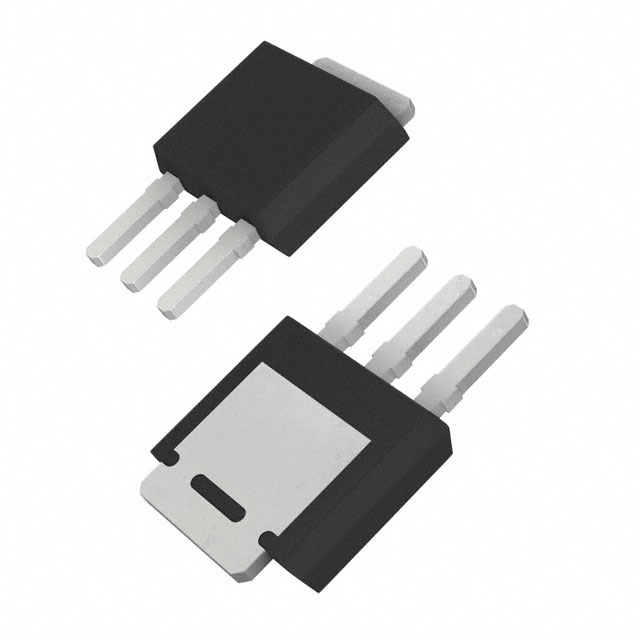

  • MOSFET P-CH 60V 15.5A IPAK
  •  NTD20P06L-001 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity75
  • DescriptionP-Channel 60 V 15.5A (Ta) 65W (Tc) Through Hole IPAK
  • Package / CaseTO-251-3 Short Leads, IPAK, TO-251AA
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C15.5A (Ta)
  • Rds On (Max) @ Id, Vgs150mOhm @ 7.5A, 5V
  • Power Dissipation (Max)65W (Tc)
  • Vgs(th) (Max) @ Id2V @ 250µA
  • Supplier Device PackageIPAK
  • Drive Voltage (Max Rds On, Min Rds On)5V
  • Vgs (Max)±20V
  • Drain to Source Voltage (Vdss)60 V
  • Gate Charge (Qg) (Max) @ Vgs26 nC @ 5 V
  • Input Capacitance (Ciss) (Max) @ Vds1190 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NTD20P06L-001 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
