  • Sanyo Semiconductor/onsemi
  • NCP12700BMTTXG
  • Integrated Circuits (ICs)
  • IC OFFLINE SWITCH FLYBACK 10WQFN
  •  NCP12700BMTTXG Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionConverter Offline Flyback Topology 100kHz ~ 1MHz 10-WQFN (4x3)

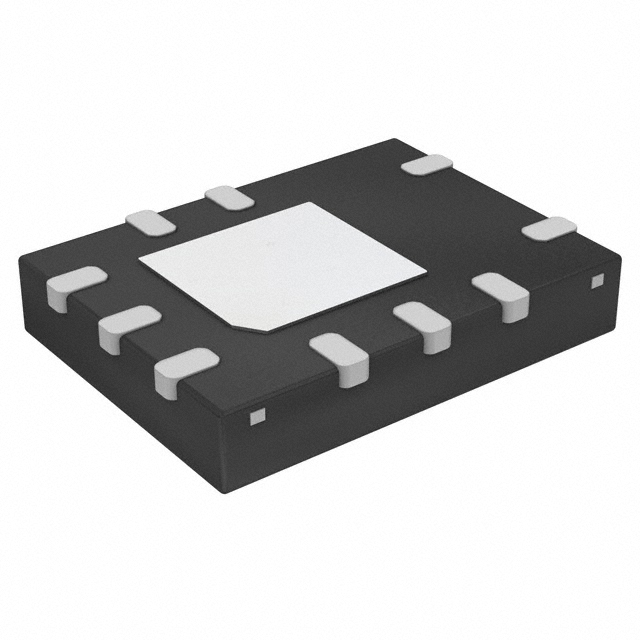

  • Package / Case10-WQFN Exposed Pad
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 125°C (TJ)
  • Duty Cycle80%
  • Frequency - Switching100kHz ~ 1MHz
  • Internal Switch(s)No
  • Output IsolationIsolated
  • TopologyFlyback
  • Voltage - Supply (Vcc/Vdd)9V ~ 20V
  • Supplier Device Package10-WQFN (4x3)
  • Fault ProtectionCurrent Limiting, Open Loop, Over Load, Over Power, Over Temperature, Over Voltage, Short Circuit
  • Control FeaturesEN, Frequency Control, Soft Start, Sync

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NCP12700BMTTXG from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,890
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
