  • Spang Magnetics (Magnetics)
  • 00X8020E026
  • Magnetics - Transformer, Inductor Components

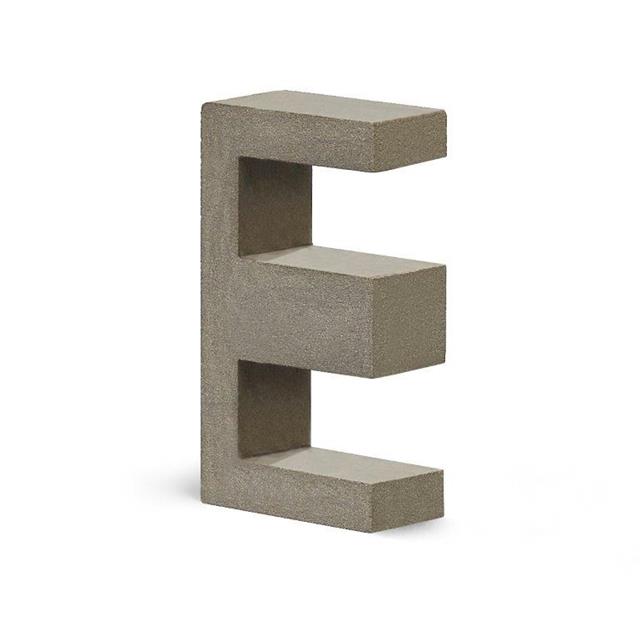

  • FERRITE CORE E 103NH XFLUX
  •  00X8020E026 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSpang Magnetics (Magnetics)
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity216
  • DescriptionUncoated XFlux Ferrite Core E Type 3.150" (80.00mm) Length 0.780" (19.80mm) Width Diameter 1.500" (38.10mm) Height
  • Tolerance±8%
  • MaterialXFlux
  • Length3.150" (80.00mm)
  • Width0.780" (19.80mm)
  • Height1.500" (38.10mm)
  • Core TypeE
  • Inductance Factor (Al)103 nH
  • Initial Permeability (µi)26
  • FinishUncoated
  • GapUngapped
  • Effective Length (le) mm185
  • Effective Area (Ae) mm²389
  • Effective Magnetic Volume (Ve) mm³72000

VIEW ALL
