Sullins Connector Solutions
PBC06DGAN
Connectors, Interconnects

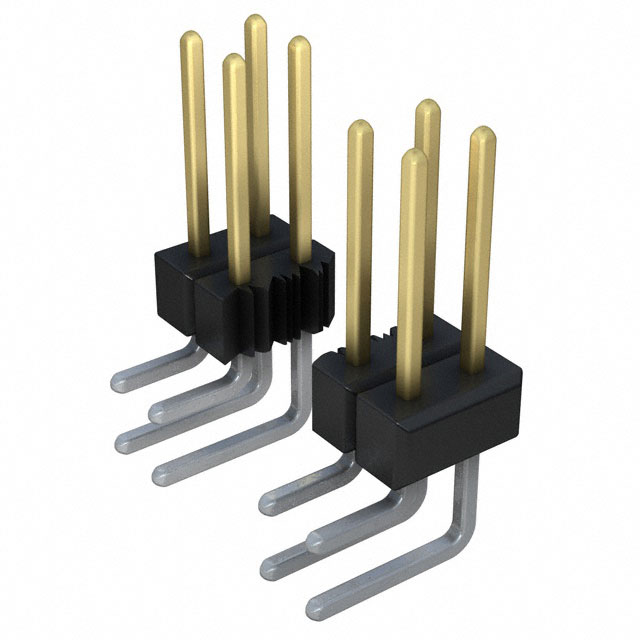

CONN HEADER R/A 12POS 2.54MM
PBC06DGAN Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSullins Connector Solutions
CategoryConnectors, Interconnects
PackagesBulk
Standard Quantity1
DescriptionConnector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
Connector TypeHeader, Breakaway
Current Rating (Amps)3A
Mounting TypeThrough Hole, Right Angle
Number of Positions12
Number of Rows2
StyleBoard to Board or Cable
Operating Temperature-65°C ~ 125°C
Contact TypeMale Pin
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Material Flammability RatingUL94 V-0
Contact MaterialPhosphor Bronze
Insulation ColorBlack
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating10.0µin (0.25µm)
Contact Finish - PostTin
Contact Finish Thickness - Post100.0µin (2.54µm)
Contact ShapeSquare
Contact Length - Post0.100" (2.54mm)
Insulation Height0.240" (6.10mm)
ShroudingUnshrouded
Insulation MaterialPolybutylene Terephthalate (PBT)
Row Spacing - Mating0.100" (2.54mm)
Contact Length - Mating0.318" (8.08mm)

VIEW ALL
