  • TDK Corporation
  • PC95EIR14/4.5/9-Z
  • Magnetics - Transformer, Inductor Components

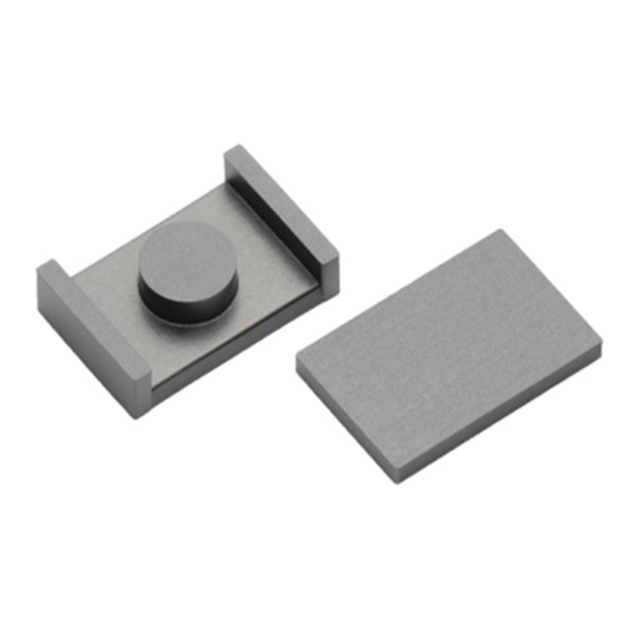

  • FERRITE COR HER 2.8UH PCS95 1SET
  •  PC95EIR14/4.5/9-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity400
  • DescriptionUncoated PC95 Ferrite Core HER, PLT Type 0.545" (13.85mm) Length 0.354" (9.00mm) Width Diameter 0.177" (4.50mm) Height
  • Tolerance±25%
  • MaterialPC95
  • Length0.545" (13.85mm)
  • Width0.354" (9.00mm)
  • Height0.177" (4.50mm)
  • Core TypeHER, PLT
  • Supplier Device PackageEIR 14 x 4.5 x 9
  • Inductance Factor (Al)2.8 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.68
  • Effective Length (le) mm22.7
  • Effective Area (Ae) mm²15.4
  • Minimum Core Cross Section (Amin) mm²21.2
  • Effective Magnetic Volume (Ve) mm³349.0

VIEW ALL
