  • TDK Corporation
  • PC47EER49-Z
  • Magnetics - Transformer, Inductor Components

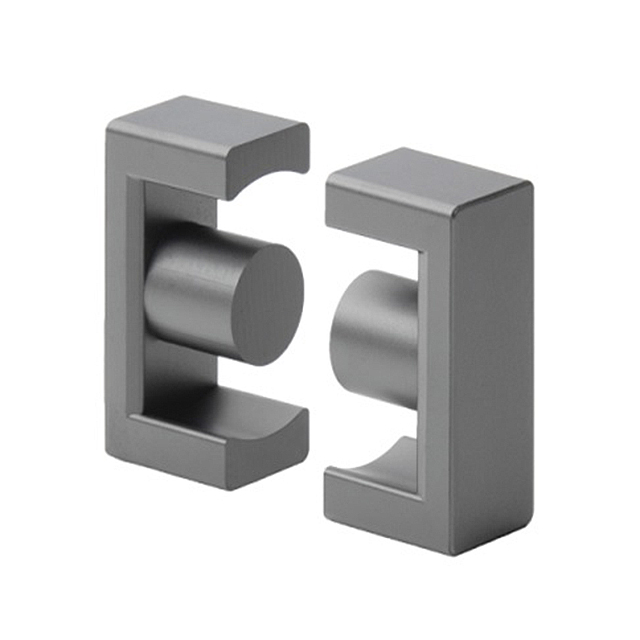

  • FERRITE CORE E 6.25UH PCS47 2PC
  •  PC47EER49-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity48
  • DescriptionUncoated PC47 Ferrite Core E Type 1.929" (49.00mm) Length 0.677" (17.20mm) Width Diameter 0.748" (19.00mm) Height
  • Tolerance±25%
  • MaterialPC47
  • Length1.929" (49.00mm)
  • Width0.677" (17.20mm)
  • Height0.748" (19.00mm)
  • Core TypeE
  • Supplier Device PackageEER 49
  • Inductance Factor (Al)6.25 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.4
  • Effective Length (le) mm91.3
  • Effective Area (Ae) mm²231
  • Effective Magnetic Volume (Ve) mm³21100
