  • TDK Corporation
  • PC95ER14/4.5/9-Z
  • Magnetics - Transformer, Inductor Components

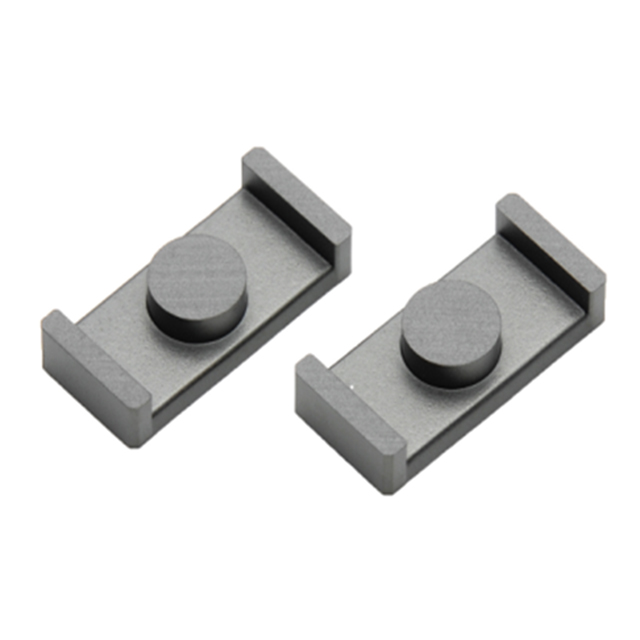

  • FERRITE CORE ER 2.55UH PCS95 2PC
  •  PC95ER14/4.5/9-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity400
  • DescriptionUncoated PC95 Ferrite Core ER Type 0.545" (13.85mm) Length 0.354" (9.00mm) Width Diameter 0.089" (2.25mm) Height
  • Tolerance±25%
  • MaterialPC95
  • Length0.545" (13.85mm)
  • Width0.354" (9.00mm)
  • Height0.089" (2.25mm)
  • Core TypeER
  • Supplier Device PackageEI 14 x 4.5 x 9
  • Inductance Factor (Al)2.55 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.68
  • Effective Length (le) mm22.7
  • Effective Area (Ae) mm²15.4
  • Minimum Core Cross Section (Amin) mm²21.2
  • Effective Magnetic Volume (Ve) mm³349

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC95ER14/4.5/9-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 359
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
