  • TDK Corporation
  • PC40RM6Z-12-NN
  • Magnetics - Transformer, Inductor Components

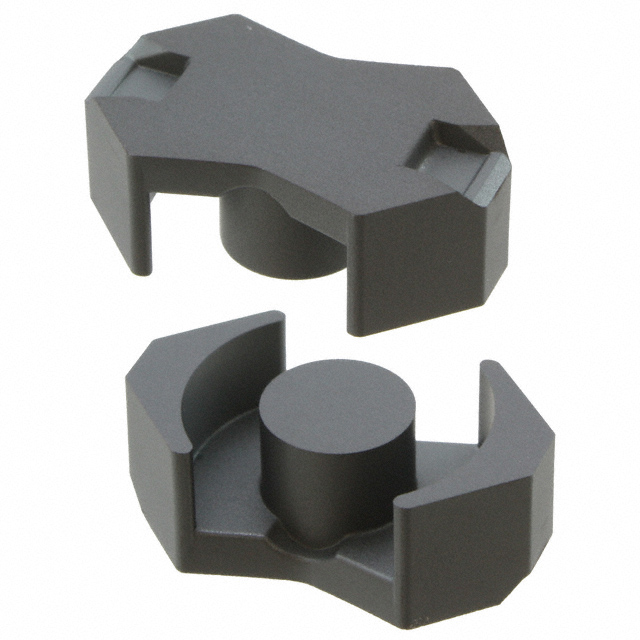

  • FERRITE CORE RM 1.6UH PCS40
  •  PC40RM6Z-12-NN Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity1
  • DescriptionUncoated PC40 Ferrite Core RM Type 0.693" (17.60mm) Length 0.315" (8.00mm) Width Diameter 0.244" (6.20mm) Height
  • MaterialPC40
  • Length0.693" (17.60mm)
  • Width0.315" (8.00mm)
  • Height0.244" (6.20mm)
  • Core TypeRM
  • Supplier Device PackageRM 6
  • Inductance Factor (Al)1.6 µH
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1520
  • Core Factor (ΣI/A) mm⁻¹0.78
  • Effective Length (le) mm28.6
  • Effective Area (Ae) mm²36.6
  • Minimum Core Cross Section (Amin) mm²30.2
  • Effective Magnetic Volume (Ve) mm³1050

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC40RM6Z-12-NN from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
