  • TDK Corporation
  • PC47EER25.5-Z
  • Magnetics - Transformer, Inductor Components

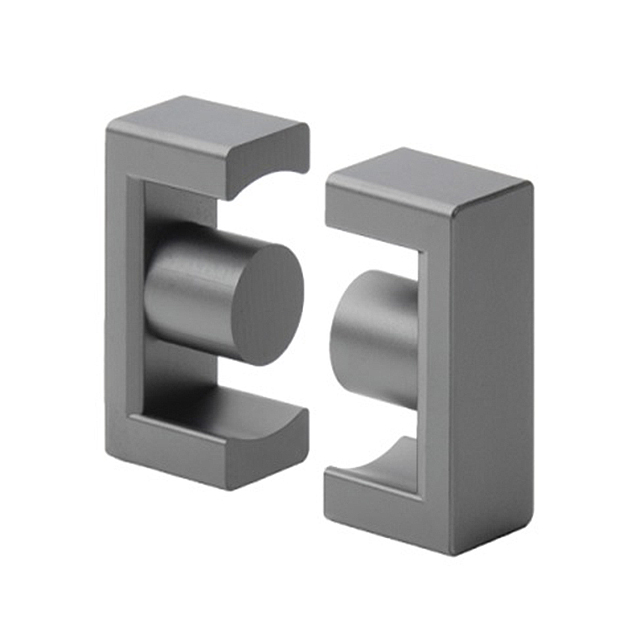

  • FERRITE COR EER 1.92UH PCS47 2PC
  •  PC47EER25.5-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity480
  • DescriptionUncoated PC47 Ferrite Core EER Type 1.004" (25.50mm) Length 0.295" (7.50mm) Width Diameter 0.366" (9.30mm) Height
  • Tolerance±25%
  • MaterialPC47
  • Length1.004" (25.50mm)
  • Width0.295" (7.50mm)
  • Height0.366" (9.30mm)
  • Core TypeEER
  • Supplier Device PackageEER 25.5
  • Inductance Factor (Al)1.92 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹1.08
  • Effective Length (le) mm48.2
  • Effective Area (Ae) mm²44.8
  • Effective Magnetic Volume (Ve) mm³2160

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC47EER25.5-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 444
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
