  • TDK Corporation
  • PC47EPC13-Z
  • Magnetics - Transformer, Inductor Components

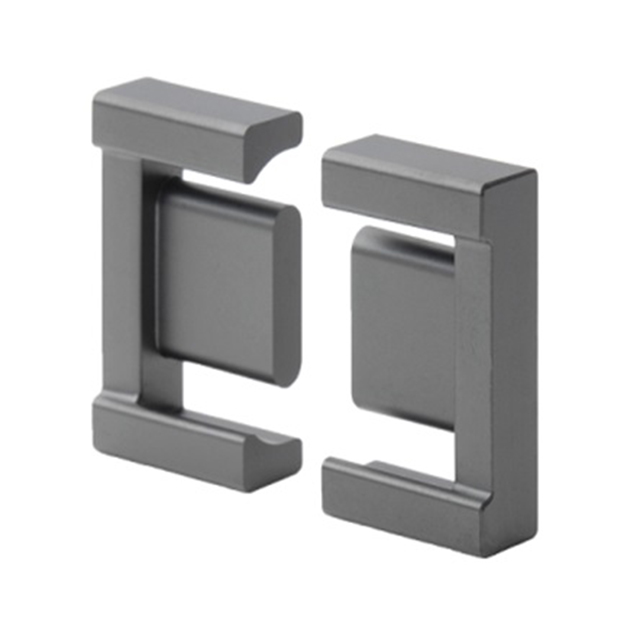

  • FERRITE COR EPCS 870NH PCS47 2PC
  •  PC47EPC13-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity900
  • DescriptionUncoated PC47 Ferrite Core EPC Type 0.522" (13.25mm) Length 0.181" (4.60mm) Width Diameter 0.260" (6.60mm) Height
  • Tolerance±25%
  • MaterialPC47
  • Length0.522" (13.25mm)
  • Width0.181" (4.60mm)
  • Height0.260" (6.60mm)
  • Core TypeEPC
  • Supplier Device PackageEPC 13
  • Inductance Factor (Al)870 nH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹2.45
  • Effective Length (le) mm30.6
  • Effective Area (Ae) mm²12.5
  • Effective Magnetic Volume (Ve) mm³382

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC47EPC13-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 875
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
