  • TDK EPCOS
  • B65701T0630A048
  • Magnetics - Transformer, Inductor Components

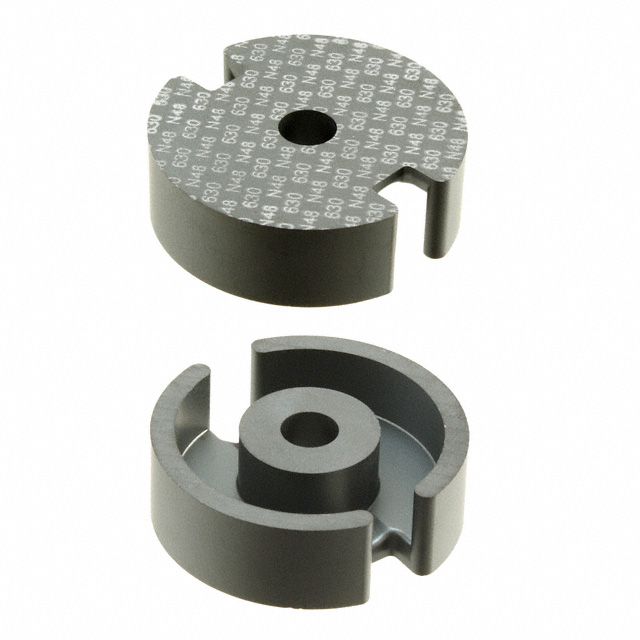

  • FERRITE CORE P 630NH N48 2PCS
  •  B65701T0630A048 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity160
  • DescriptionUncoated N48 Ferrite Core P (Pot Core) Type Length Width 1.200" (30.50mm) Diameter 0.374" (9.50mm) Height
  • Tolerance±3%
  • MaterialN48
  • Diameter1.200" (30.50mm)
  • Height0.374" (9.50mm)
  • Core TypeP (Pot Core)
  • Supplier Device PackageP 30 x 19
  • Inductance Factor (Al)630 nH
  • FinishUncoated
  • GapGapped
  • Effective Permeability (µe)166
  • Core Factor (ΣI/A) mm⁻¹0.33
  • Effective Length (le) mm45
  • Effective Area (Ae) mm²136
  • Effective Magnetic Volume (Ve) mm³6120
