  • TDK EPCOS
  • B65839A0000R045
  • Magnetics - Transformer, Inductor Components

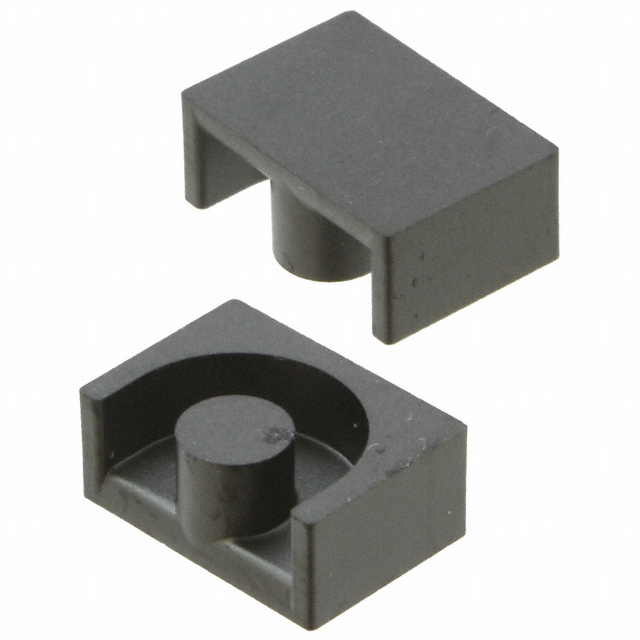

  • FERRITE CORE EP 1.5UH N45 2PCS
  •  B65839A0000R045 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity2000
  • DescriptionUncoated N45 Ferrite Core EP Type 0.370" (9.40mm) Length 0.256" (6.50mm) Width Diameter 0.148" (3.75mm) Height
  • Tolerance-20%, +30%
  • MaterialN45
  • Length0.370" (9.40mm)
  • Width0.256" (6.50mm)
  • Height0.148" (3.75mm)
  • Core TypeEP
  • Supplier Device PackageEP 7
  • Inductance Factor (Al)1.5 µH
  • Initial Permeability (µi)3800
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1820
  • Core Factor (ΣI/A) mm⁻¹1.52
  • Effective Length (le) mm15.7
  • Effective Area (Ae) mm²10.3
  • Minimum Core Cross Section (Amin) mm²8.5
  • Effective Magnetic Volume (Ve) mm³162
