  • TDK Corporation
  • PC95ELT15.5X5.8-Z
  • Magnetics - Transformer, Inductor Components

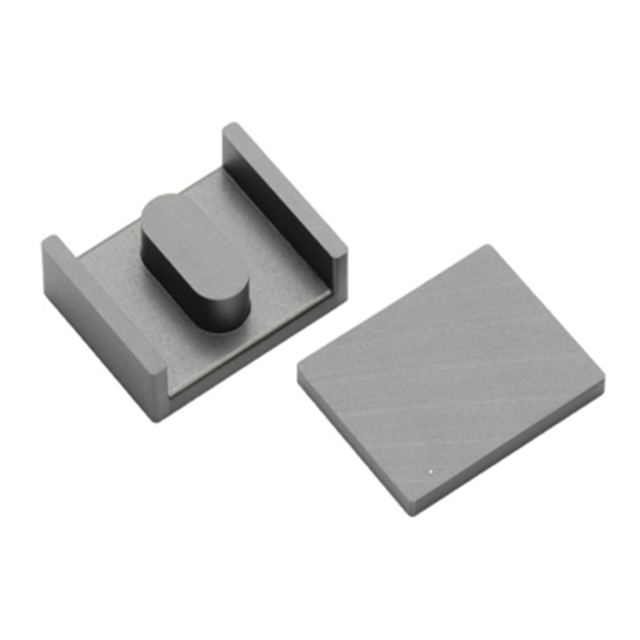

  • FERRITE CORE ELH 3.68UH 1SET
  •  PC95ELT15.5X5.8-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity450
  • DescriptionUncoated PC95 Ferrite Core ELH, PLT Type 0.610" (15.50mm) Length 0.488" (12.40mm) Width Diameter 0.174" (4.42mm) Height
  • Tolerance±25%
  • MaterialPC95
  • Length0.610" (15.50mm)
  • Width0.488" (12.40mm)
  • Height0.174" (4.42mm)
  • Core TypeELH, PLT
  • Supplier Device PackageELT 15.5 x 5.8
  • Inductance Factor (Al)3.68 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.6
  • Effective Length (le) mm32.9
  • Effective Area (Ae) mm²19.6
  • Minimum Core Cross Section (Amin) mm²31.9
  • Effective Magnetic Volume (Ve) mm³646.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC95ELT15.5X5.8-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,608
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
