  • TDK Corporation
  • PC47EPC17-Z
  • Magnetics - Transformer, Inductor Components

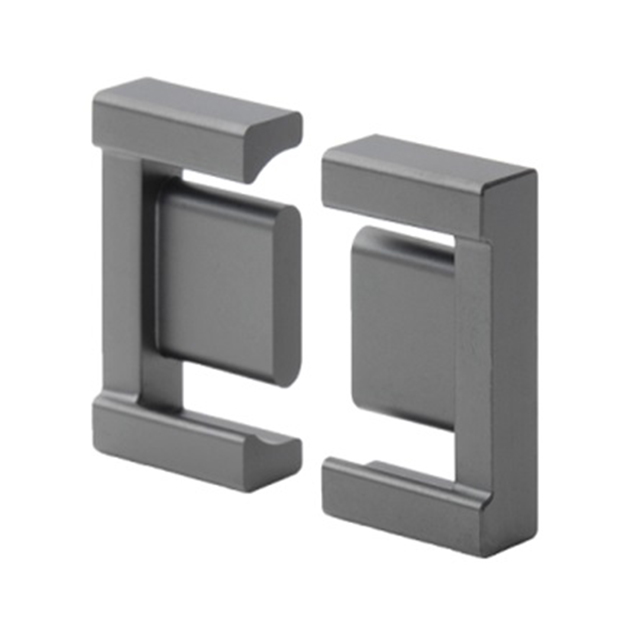

  • FERRITE CORE EPCS 1.15UH 2PC
  •  PC47EPC17-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity400
  • DescriptionUncoated PC47 Ferrite Core EPC Type 0.693" (17.60mm) Length 0.236" (6.00mm) Width Diameter 0.337" (8.55mm) Height
  • Tolerance±25%
  • MaterialPC47
  • Length0.693" (17.60mm)
  • Width0.236" (6.00mm)
  • Height0.337" (8.55mm)
  • Core TypeEPC
  • Supplier Device PackageEPC 17
  • Inductance Factor (Al)1.15 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹1.76
  • Effective Length (le) mm40.2
  • Effective Area (Ae) mm²22.8
  • Effective Magnetic Volume (Ve) mm³917

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC47EPC17-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 265
Please send an RFQ for instant price and inventory.
